Squat Pan Flush Tank
This Squat Pan Flush Tank needs to be installed before the wall is pressed and laid. Alternatively, a gap can be created so that the water tank can be installed. It usually requires a wall-facing pan, which requires a stand that not only holds the pan in place, but also ensures that it can carry the weight of the person sitting on the toilet suite.
Product details
Product description
This Squat Pan Flush Tank needs to be installed before the wall is pressed and laid. Alternatively, a gap can be created so that the water tank can be installed. It usually requires a wall-facing pan, which requires a stand that not only holds the pan in place, but also ensures that it can carry the weight of the person sitting on the toilet suite. This Squat Pan Flush Tank works best in bathroom renovations, all walls are removed and the space is back in stud engineering or brand new homes. It has good impact resistance. Its inlet pipe is a passage pipe that injects water into the toilet tank, and the outlet pipe is a passage pipe that discharges water into the toilet when flushing the toilet. The water pipe that it is equipped with can effectively prevent the structure of the water level in the toilet tank from being too high. When the water level in the Squat Pan Flush Tank reaches a certain height, if the water level continues to rise, the excess water will flow into the toilet through the seepage pipe to avoid overflowing everywhere. This product is two-button, so it is easy to use.
Product specifications
Item Code | 015B | Suit with | Bathroom Squatting Pan |
Dimension(mm): | 361x115x368 | Type | Exposed outside: Low level cistern |
Tank body color | white | Material | PP |

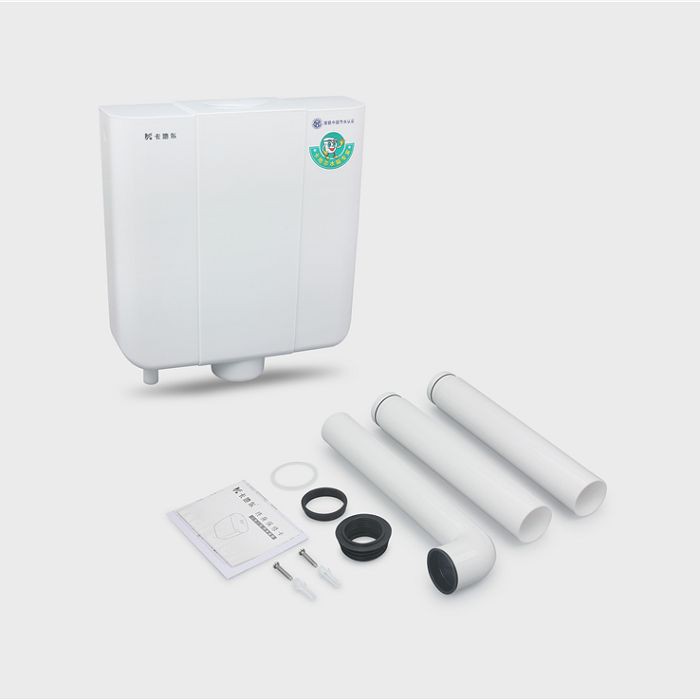

Package | All fittings included. inner box: 368x120x430mm: Master carton: 640x390x450mm | Loading quantity | Per carton: 0.113CBM 20GP: 1200sets 40GP: 2530 sets 40HQ: 3000 sets |
Flush volume | 3L and 6L max. 7.5L | Button color | white |
Flushing type | Dual flush | Button Type | Top double push button |
Entry type | Bottom Entry | Delivery Time | LCL 5-10 days, 20GP and 40HQ need 20-25days |
Bend pipe diameter | 45mm | Straight pipe diameter | 50mm |

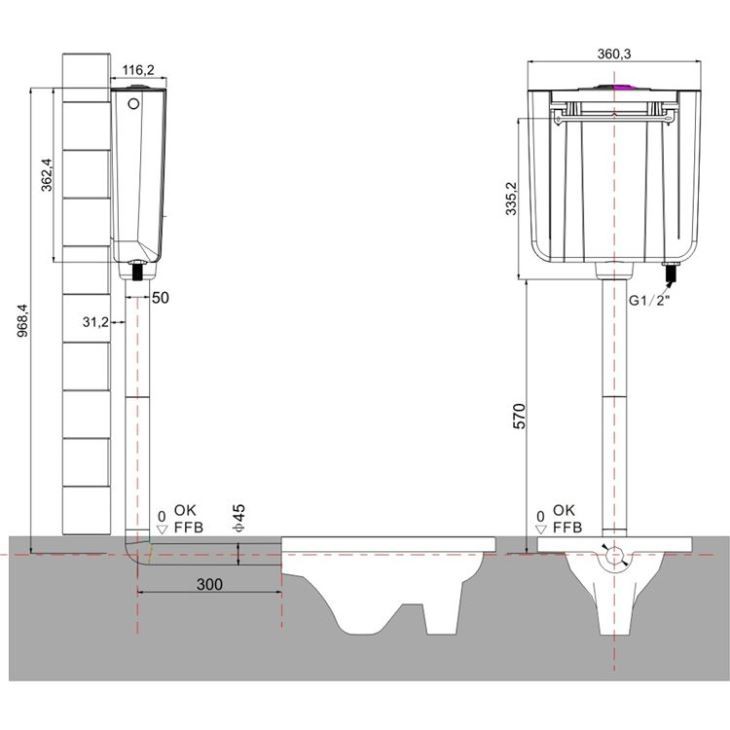

Squat pan filling hole require | inner φ52-58mm | Wall to squat pan hole distance | 200-340mm |
MOQ | 50 PCS | Payment method | TT and LC |
