Top Access Concealed Cistern

We provide top access concealed cistern, which also describe as: concealed cistern cabinet, suit for back-to-wall toilet, Top push plate Toilet concealed cistern for wall hung pan with lower frame 800mm height and with 135mm thickness for window wall & half dry wall use.

Product classification：Lower Height Concealed Cistern

Consult now：+86-1892485-8611/ 8635/ 8981

Related products

Product details

Product Description

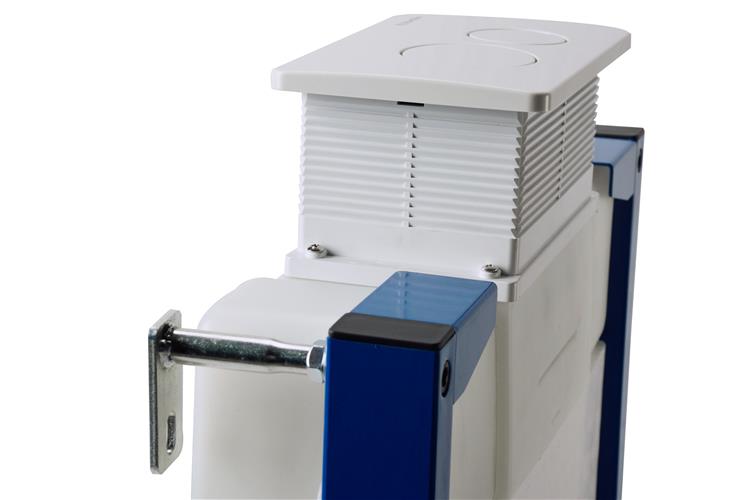

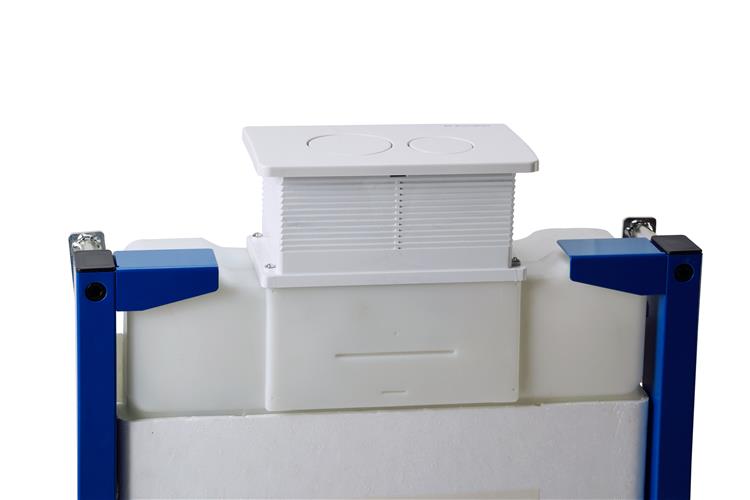

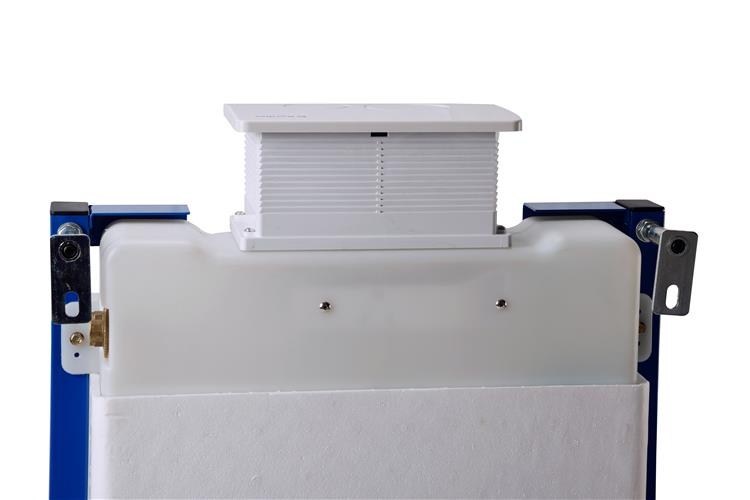

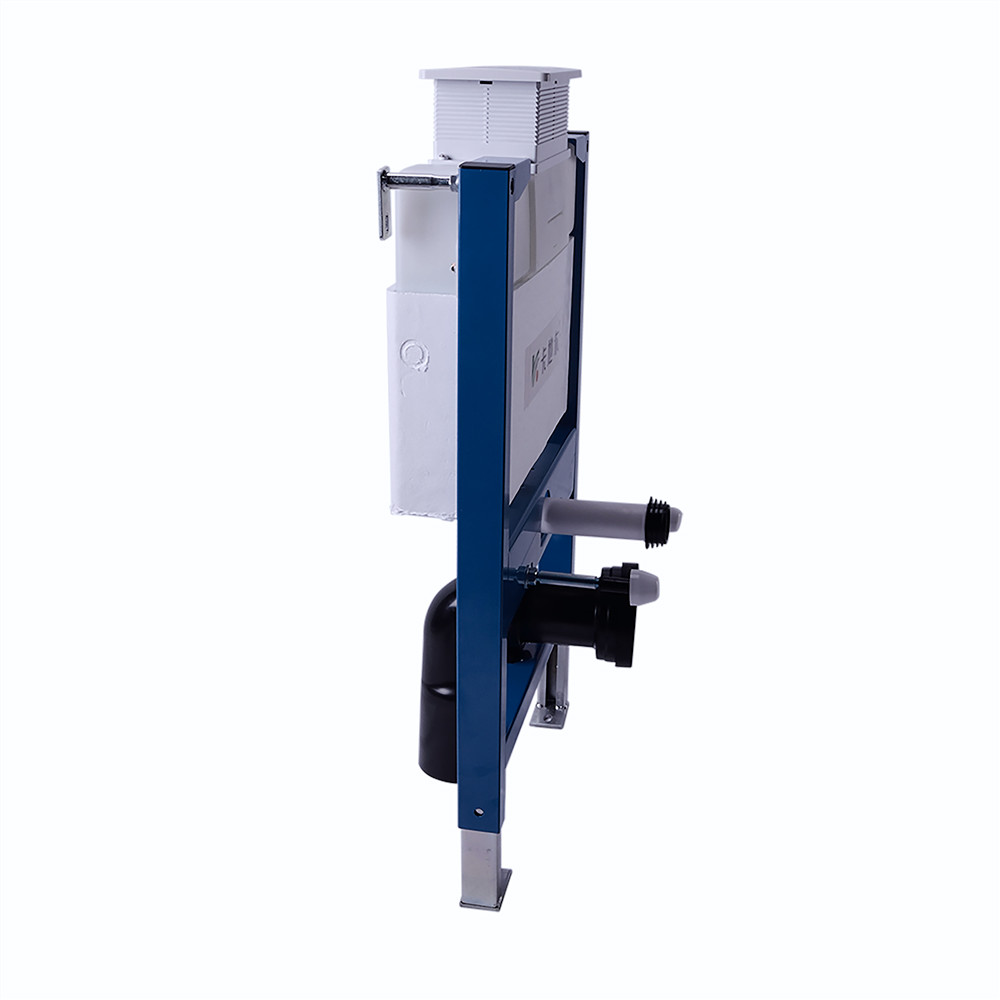

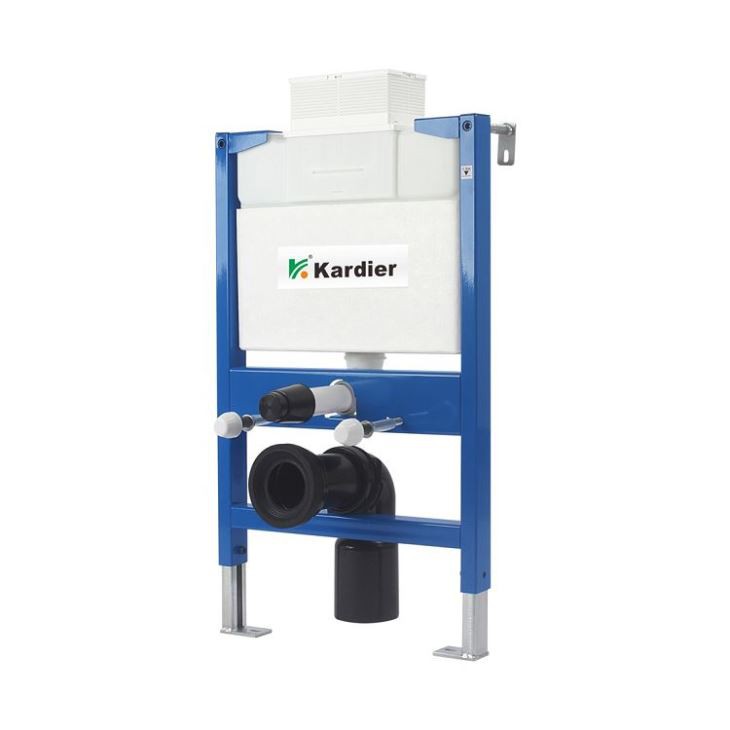

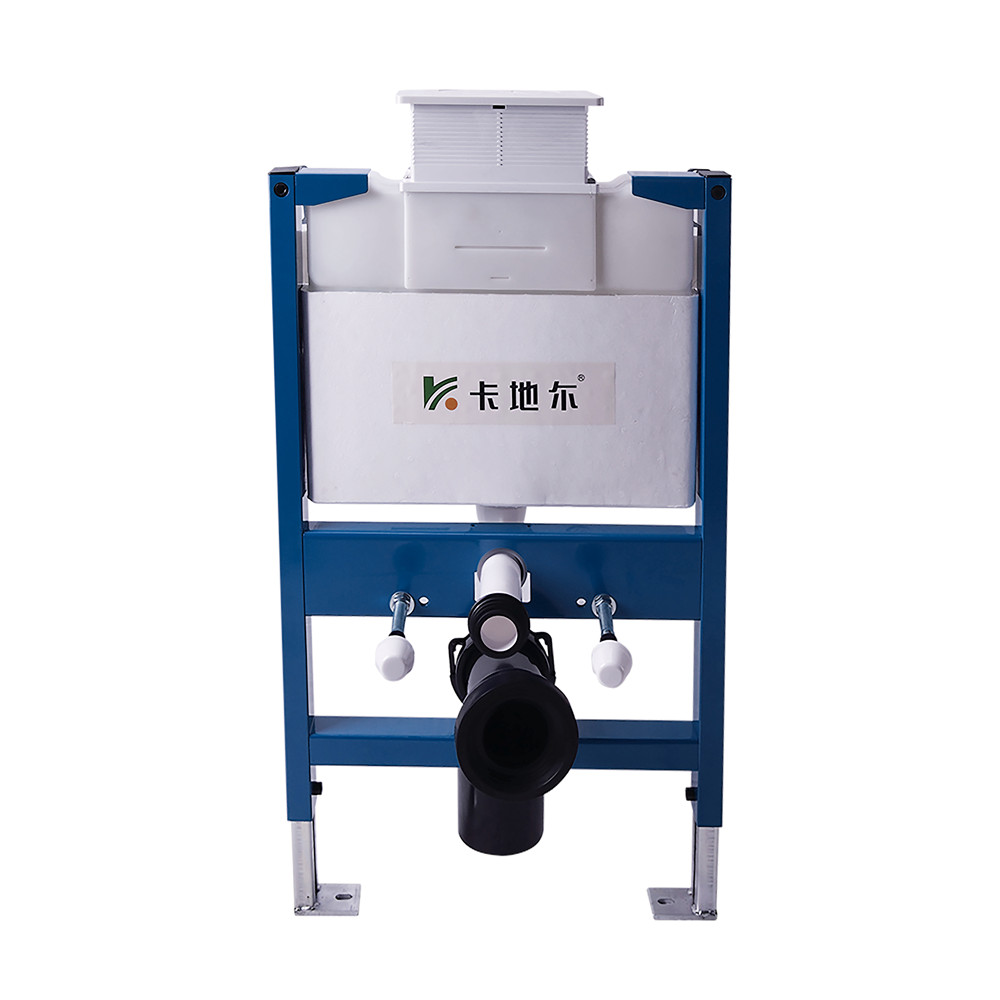

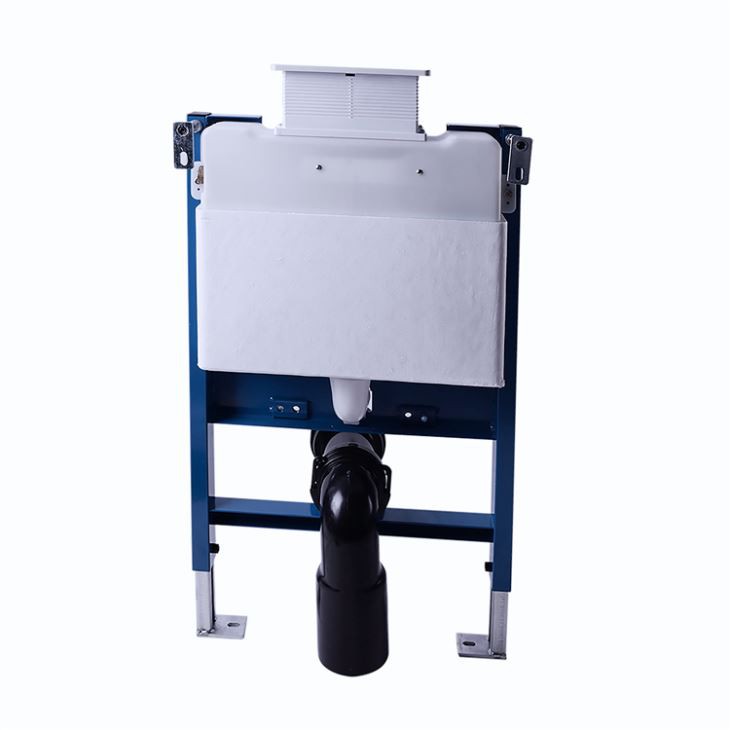

Top access concealed cistern, also name as: toilet cistern top or toilet concealed cistern or top flush cistern. suit for wall hung w.c, Top push plate Toilet concealed cistern for wall hung pan with lower frame 800mm height and with 135mm thickness for window wall & half dry wall use.

Special points:

● With top push button metal frame concealed cistern for wall hung toilet

● Can fix in bathroom cabinet or pre-half wall or install under window

● Lower frame around 800mm height

● The steel frame is corrosion resistant and can bear over 400kgs stress

● Easy clean and nice looking, update your bathroom class

Model Code.	010D	Certificate approval	NONE

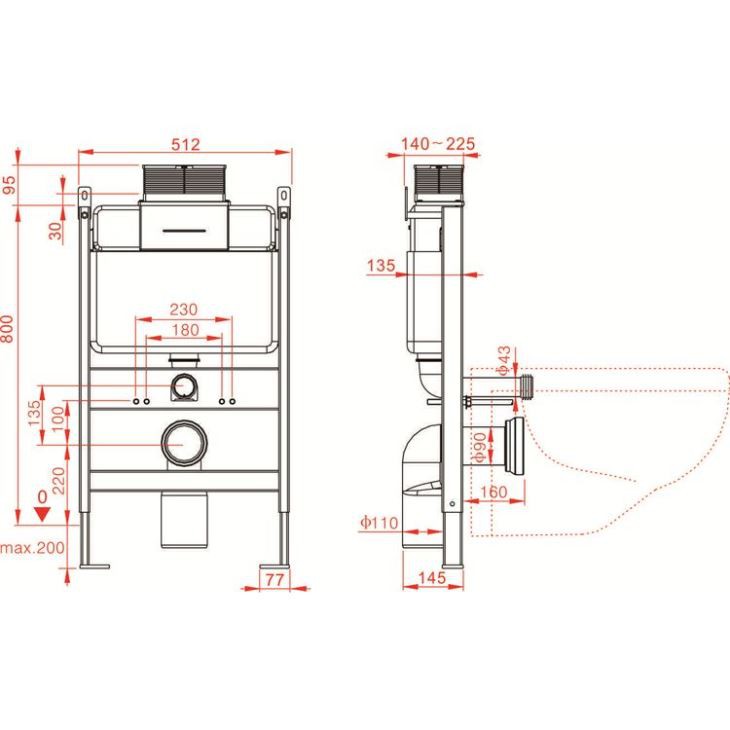

Dimension (mm)	512x134x745mm	Flush pipe diameter	110mm
Carton Size (mm)	523x160x890mm	Suit for	wall mounted toilet pan
Need wall thickness	≥145mm	Material	HDPE +metal frame
For wall	dry wall; pre-wall and dry half wall; pre-half wall	Flushing volumn	3L/ 6L max. 8L

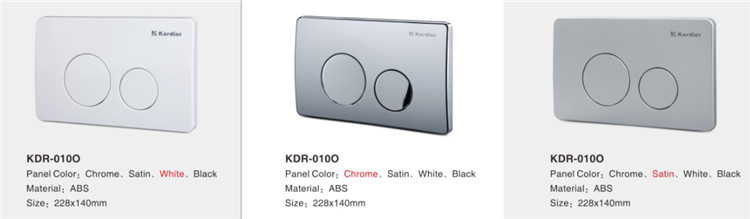

Panel size (mm)	228x140	Panel choices	O
Panel color	satin/ white/ black/ gold/ chrome/ silver etc	Flushing	Dual flush
Frame undertake (kgs)	≥400	Delivery Time	LCL 7-10 days, 20GP & 40HQ need 20-25days
MOQ	50 PCS	Port of loading	SHUNDE, CHINA / SHENZHEN, CHINE/ GUANGZHOU, CHINA
Package details	Carton packing, 1set/ctn; All fittings, include flush plate, frame, tank body with inner fittings and flush pipe.	Loading qty	0.0745CBM/SET 20GP: 360 sets 40GP: 760 sets 40HQ: 890 sets
