Concealed Cistern Low Height
We provide concealed cistern low height, which also describe as: inwall toilet tank, suit for back to the wall toilet, Front push plate Concealed Toilet Tank for wall mounted pan with lower frame 742mm height and with 135mm thickness for window wall and normal wall and half dry wall.
Consult
now：+86-1892485-8611/ 8635/ 8981
Product details
Product Description

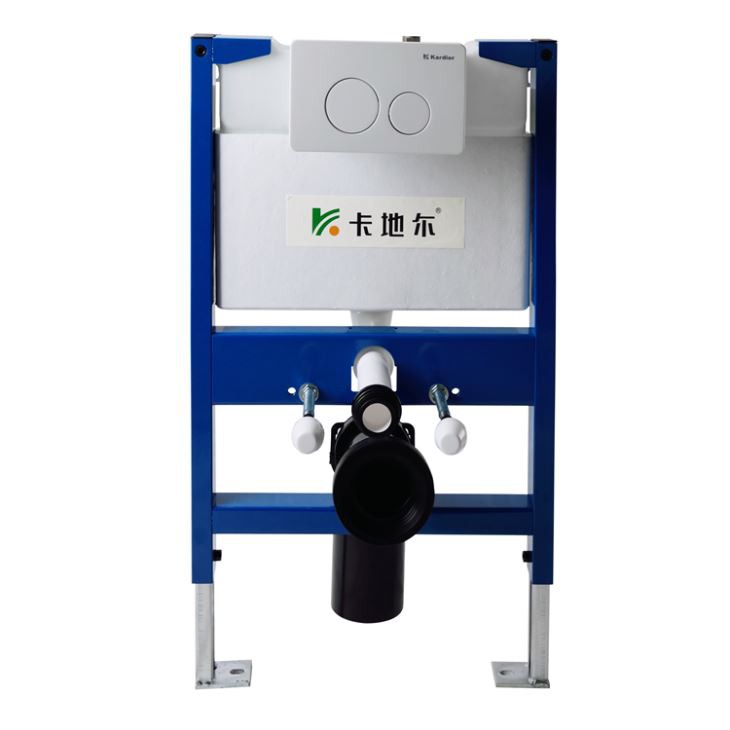

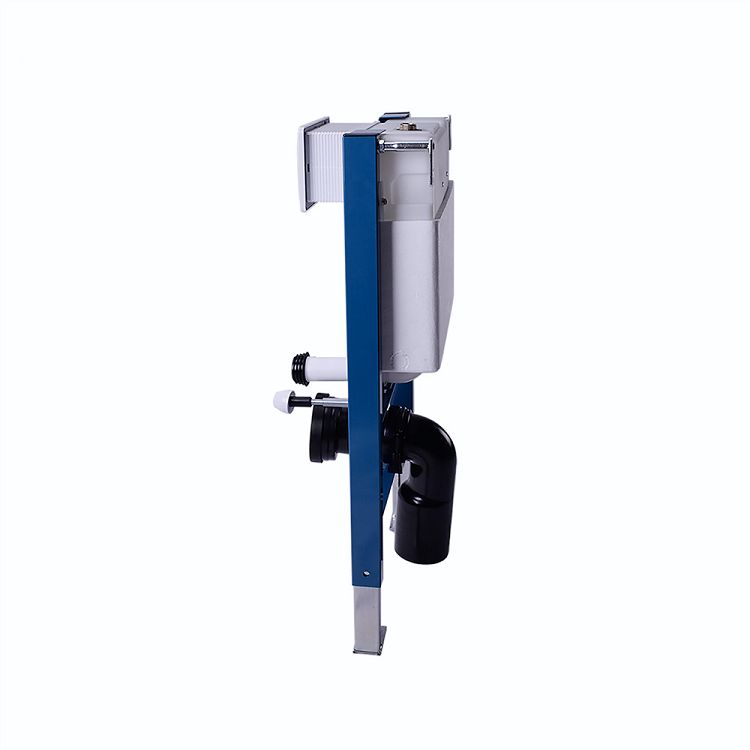

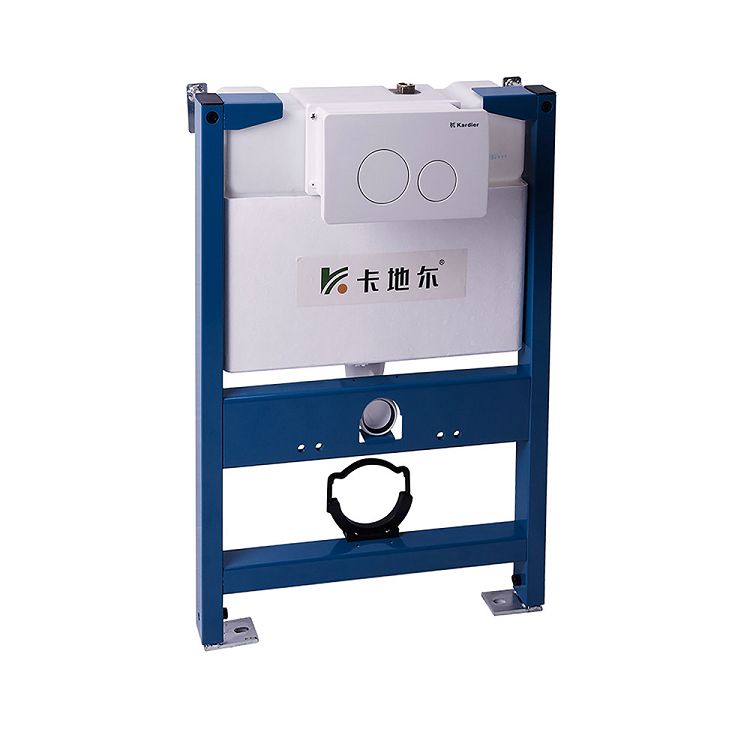

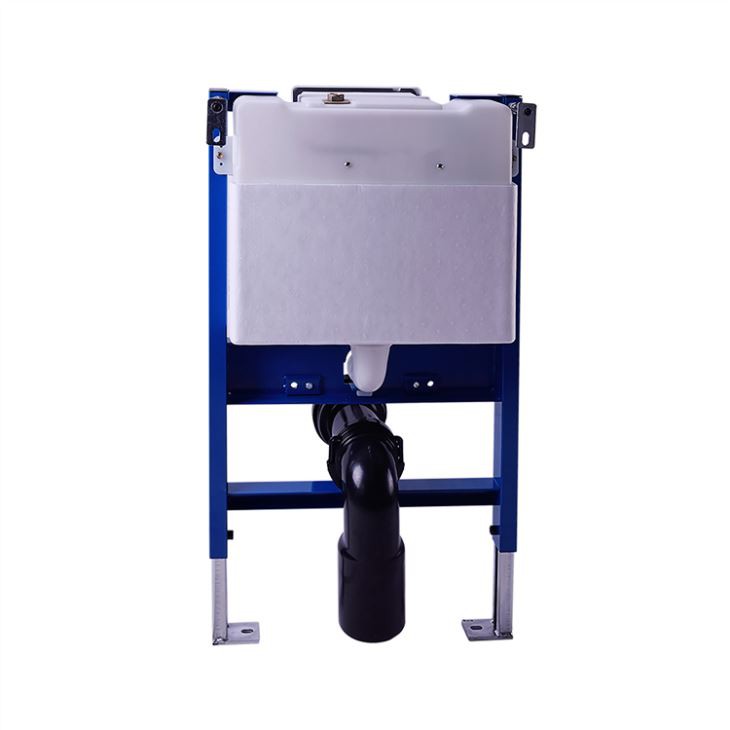

Concealed cistern low height, also name as: concealed flush tank top or concealed tank top or concealed cistern under window. suit for wall mounted w.c, Front push plate Concealed Toilet Tank for wall mounted pan with lower frame 742mm height and with 135mm thickness for window wall and normal wall and half dry wall.
Model NO. | 010E | Certificate | NO |

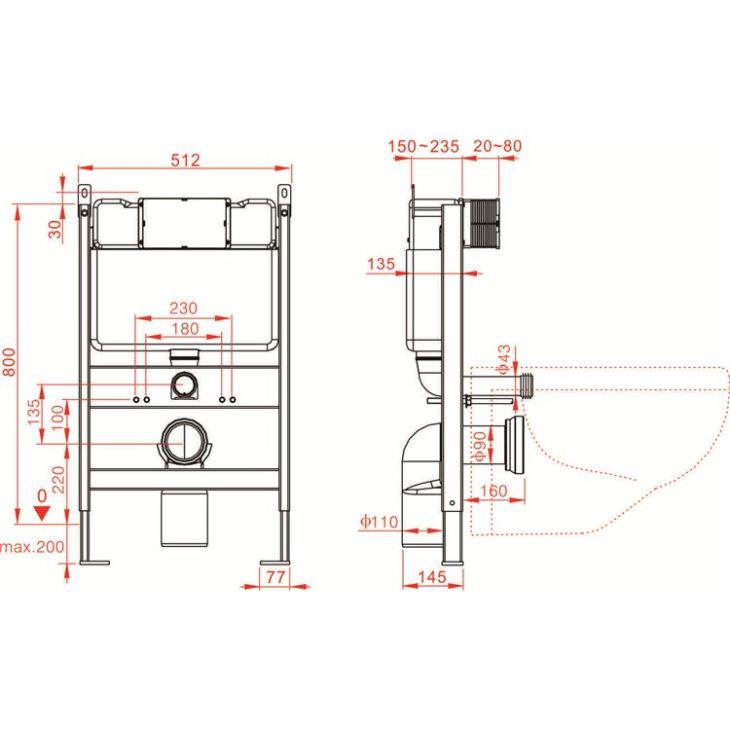

Dimension (mm) | 512x134x745mm | Flush pipe φ | 110mm |
Carton Size (mm) | 523x160x890 | Suit for | wall hung wc |
Need wall thickness | ≥155mm | Material | metal frame +HDPE |
For wall | dry wall and pre-wall; dry half wall; pre-half wall | Flush volumn | 3L/ 6L max. 8L |
Panel size | 228x140mm | Panel choices | O plate |
Panel color | white/black/chrome/satin/gold/ silver etc | Flushing | Dual flush |
Frame undertake (kgs) | ≥400kgs | Delivery Time | LCL 7-10 days, 20GP & 40HQ need 20-25days |
Package details | Carton packing, 1set/ctn | Loading qty | 0.0745CBM/SET 20GP: 360 sets 40GP: 760 sets 40HQ: 890 sets |
Special point:
Ø Front push small button metal frame item for wall hung toilet pan use
Ø Lower frame around 800mm height only, suitable for lower pre-half wall or dry wall or window wall use
Ø 3L/6L dual flush water volume, the flush water time is 3S-5S
Ø Metal frame is corrosion resistant and can bear over 400kgs weight

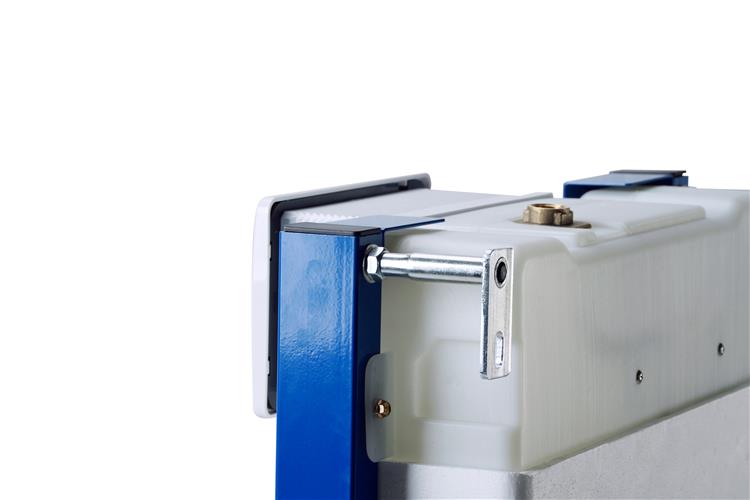

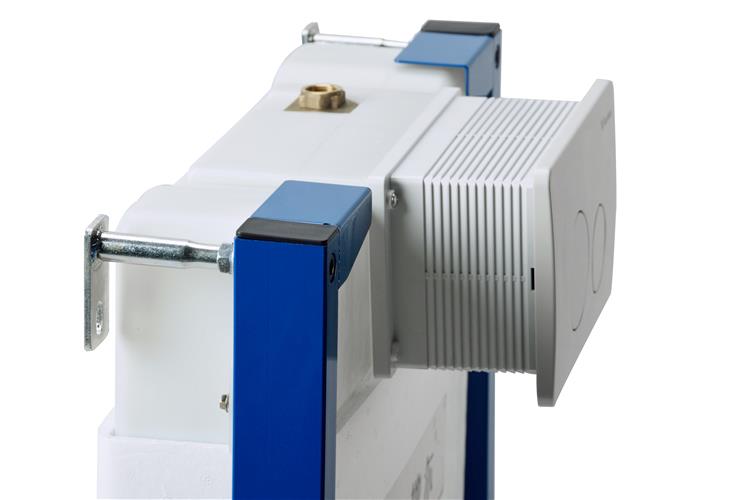

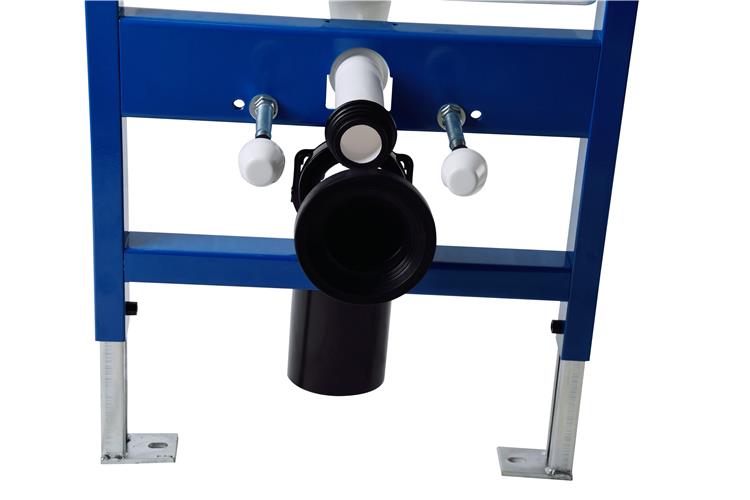

Product Details

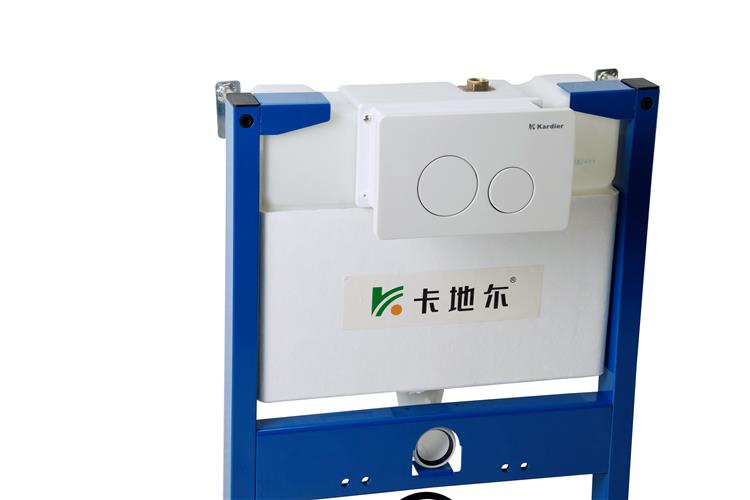

Concealed cistern flush panels

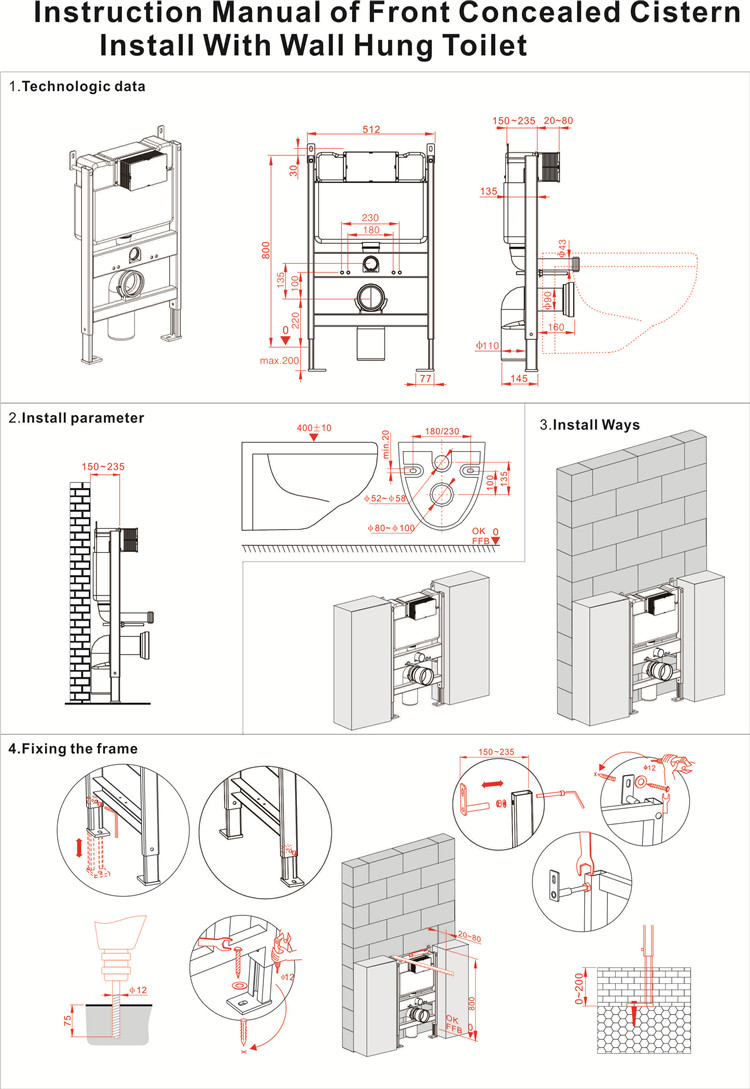

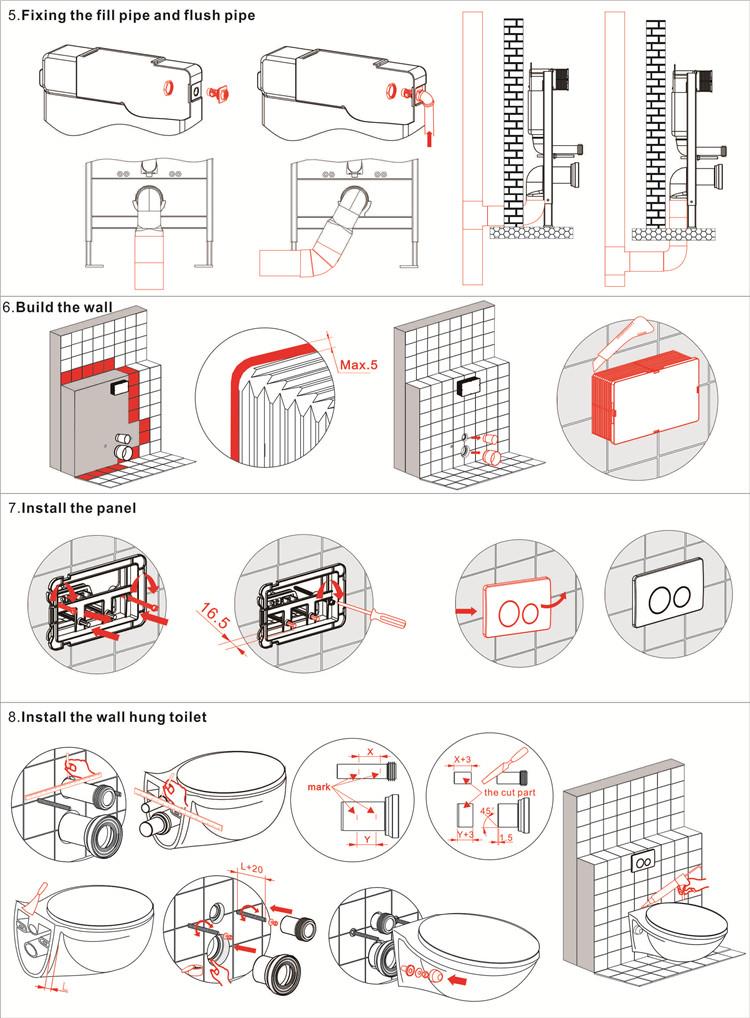

Concealed toilet cistern Installation

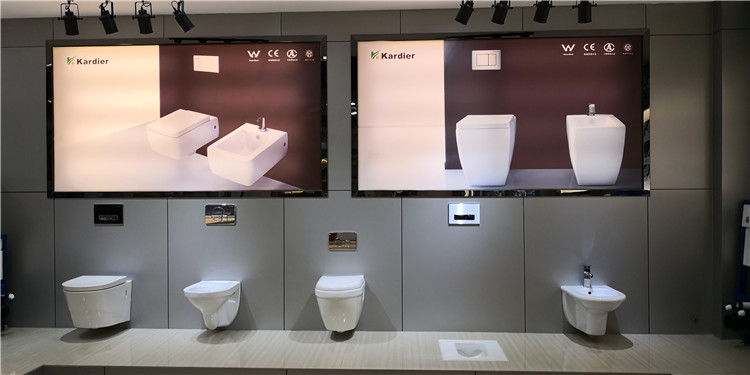

Kardier Products Range
