Wall In Toilet Cistern
We provide wall in toilet cistern, which also describe as: hideaway cistern,suit for squatting pan, Without frame Concealed Flush Cistern for squatting pan with 116mm thickness tank body.
Consult
now：+86-1892485-8611/ 8635/ 8981
Product details
Product Description

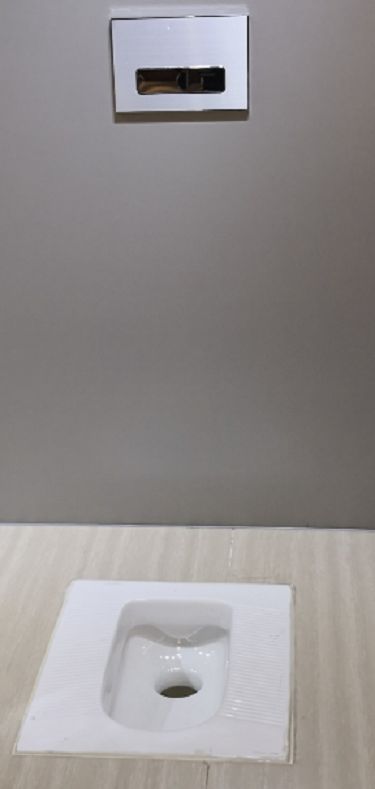

Wall in toilet cistern, also name as: dual flush concealed cisterns or concealed cistern dual flush or squat pan flush tank concealed. suit for squat pan, Without frame Concealed Flush Cistern for squatting pan with 116mm thickness tank body.
Special point:
Suit for squatting pan, and require squatting pan flushing diameter should be in range of 52mm-58mm, if squatting pan flushing hole diameter between 42mm to 48mm, please fit on small connector and let 43mm diameter change to be 32mm, other specifications should fit on suitable connector which you want.
Item. | 009C | Certificate approval | NO |
Dimension (mm) | 491x116x1074.5mm | Flush pipe diameter | 110mm |
Carton Size (mm) | 741x540x525 (4sets/ctn) | Suit for | Bathroom Squatting pan toilet |
Need wall thickness | ≥130mm | Material | HDPE plastic |
For wall | dry wall; pre-wall; dry half wall; pre-half wall | Flush volumn | 3L/ 6L max. 8L |
Panel size | 250x165mm | Panel choices | Q/W/M/H/F/A/B/C/D |
Panel color | satin/ chrome/ white/ black/ gold/ silver etc | Flushing | Dual flush |
Frame undertake | ≥400kgs | Delivery Time | LCL 7-10 days, 20GP & 40HQ need 20-25days |
MOQ | 50 PCS | Port of loading | SHUNDE, CHINA/ SHENZHEN, CHINE/ GUANGZHOU, CHINA |
Package details | 1set/box and 4sets/ctn; Carton packing | Loading qty | 0.21CBM/4SET 530 sets/20GP 1100 sets /40GP 1270sets / 40HQ |
