Wall Mounted WC Cistern

We provide wall mounted wc cistern, which also describe as: inside toilet cistern, suit for wall hung toilet bowl, High class D frame Concealed Toilet Cistern for wall mounted toilet with 127mm thickness tank body.

Product classification:Normal Concealed Cistern
Consult now:+86-1892485-8611/ 8635/ 8981

Product details

Product Description

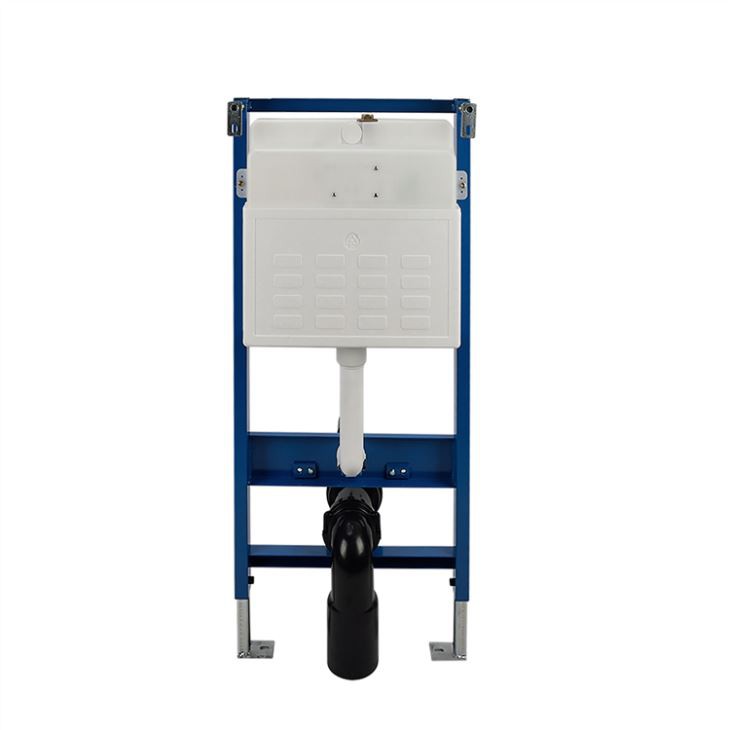

Wall mounted wc cistern, also name as: front access concealed cistern or concealed toilet flush or watermark toilet cistern. suit for wall mounted toilet, High class D frame Concealed Toilet Cistern for wall mounted toilet with 127mm thickness tank body.

Item code

009D

Certificate

CE.WRAS.WATERMARK.WELS

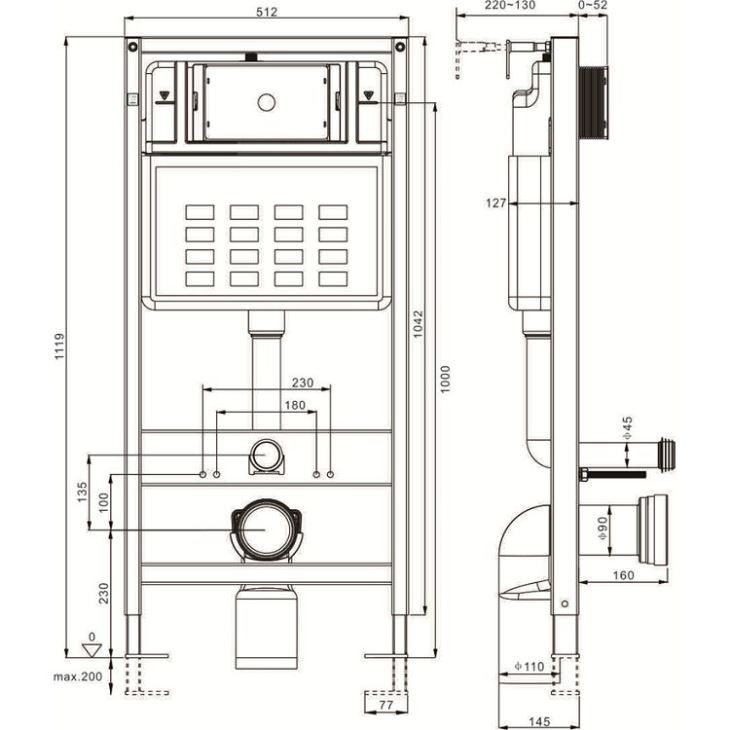

Dimension

512x127x1042mm

Flush pipe size

110

Carton Size (mm)

523x150x1100

Suit for

wall hung toilet

wall thickness

≥155mm

Material

HDPE + D metal frame

For wall

dry wall; pre-wall;dry half wall; pre-half wall

Flushing volumn

3L/ 6L max. 8L

Button size (mm)

250x165

Panel choices

all choices except O plate

Panel color

black/ gold/ chrome/ satin/ white/ silver etc

Flushing

Dual flush

Frame undertake (kgs)

≥400kgs

Delivery Time

LCL 7-10 days, 20GP & 40HQ need 20-25days

MOQ

50 PCS

Port of loading

SHUNDE, CHINA/ SHENZHEN, CHINE/ GUANGZHOU, CHINA

Payment term

TT and LC at sight

Price term

LCL: EXW SHUNDE, CHINA; 20GP and 40HQ: FOB SHUNDE, CHINA

Package details

Carton packing, 1set/ctn

Loading qty

0.0871CBM/PC

20GP: 305 PC

40GP: 650 PC

40HQ: 760 PC

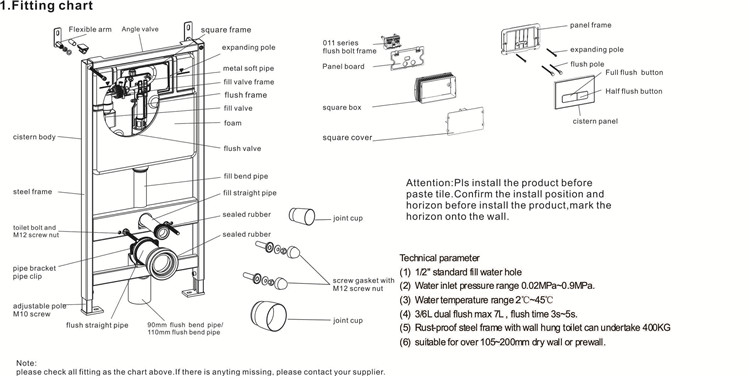

Technologic data:

1.1/2" standard fill water hole

2.The water stress range of fill water is 0.02--1.0Mpa

3.The water temperature range is 2°-45°

4.3L/6L dual flush water volume, the flush water time is 3S-5S

5.The paintted steel frame is corrosion resistant and can bear 400kgs heavy stress

6.The product can be installed in the wall of 110mm thickness

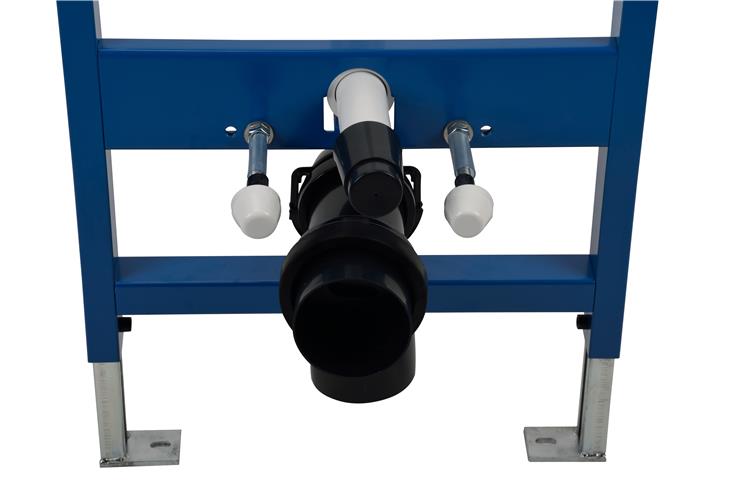

Special point: High class full frame for hanging wall hung toilet, can bear over 400KGS weight. our company top sales item in Europe and middle east. with 110mm black flush bend pipe.


Product Details

Wall Mounted WC Cistern

China Wall Mounted WC Cistern

buy Wall Mounted WC Cistern

wholesale Wall Mounted WC Cistern

Wall Mounted WC Cistern factory


discount Wall Mounted WC Cistern

Wall Mounted WC Cistern factory

Wall Mounted WC Cistern suppliers

Wall Mounted WC Cistern manufacturers

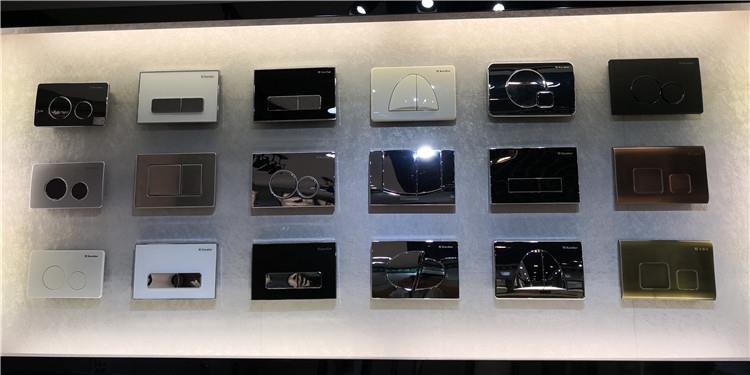

Concealed cistern flush panels

Wall Mounted WC Cistern

Wall Mounted WC Cistern

Wall Mounted WC Cistern

Wall Mounted WC Cistern

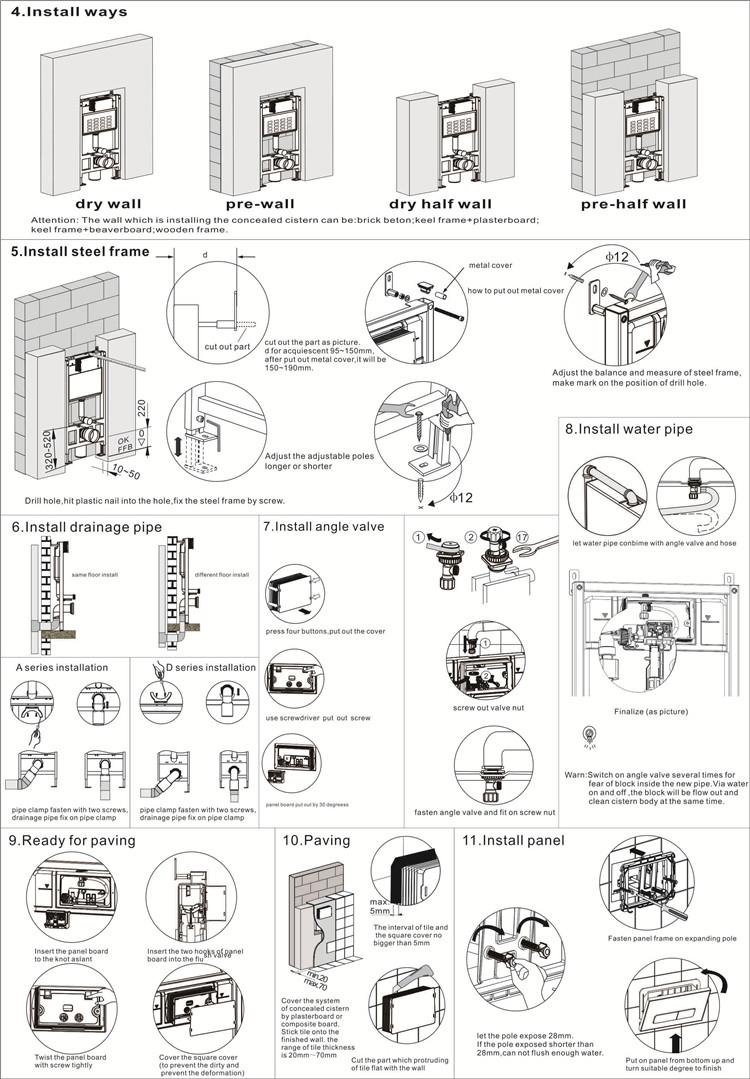

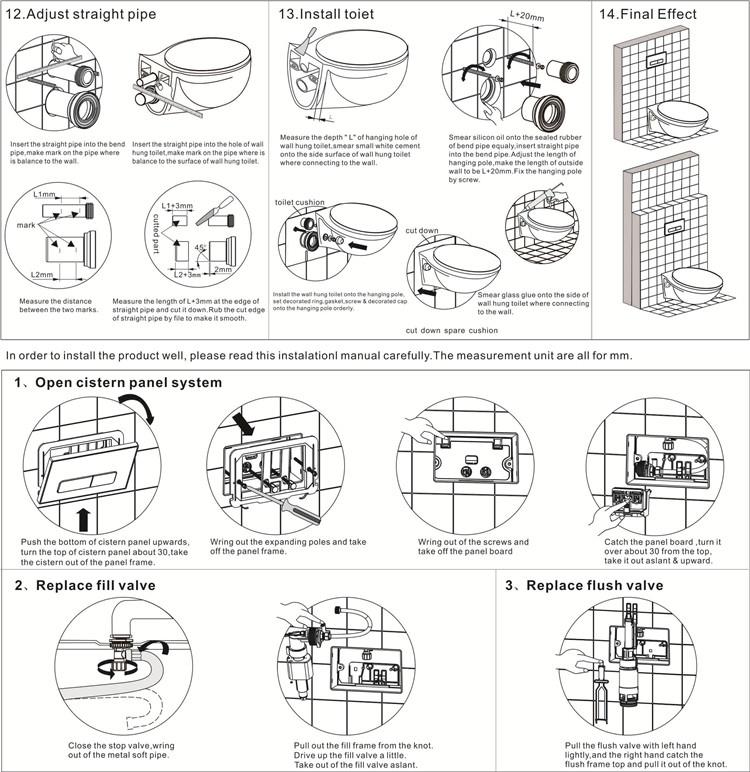

Concealed toilet cistern Installation
