Hideaway Pneumatic Toilet Cistern
We provide hideaway pneumatic toilet cistern, which also describe as: back to wall toilet frame, suit for back to wall hung wc, Pneumatic cistern with standard A frame with acrylic material white color & black color air push dual button, for wall hung pan toilet, 127mm thickness body.Compared with the ordinary hidden water tank, the flush panel of this water tank can be installed in a place convenient for people to use,and the water tank is buried inwall type, so the layout of the toilet will be more neat and beautiful.Tank body adopts integrated forming technology, reduce the risk of leaking water. Iron frame can hold 400 kg weight.
Consult
now：+86-1892485-8611/ 8635/ 8981
Product details
Product Description

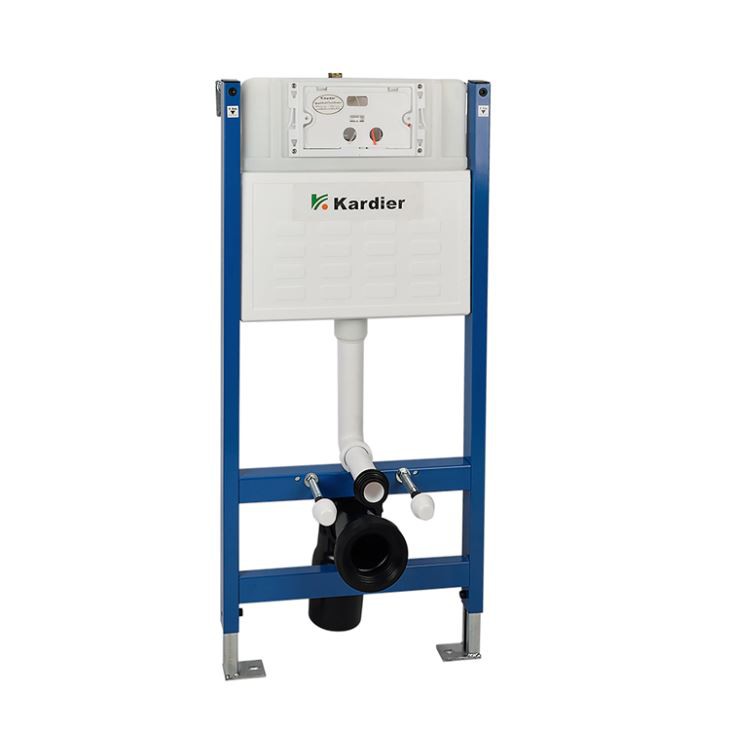

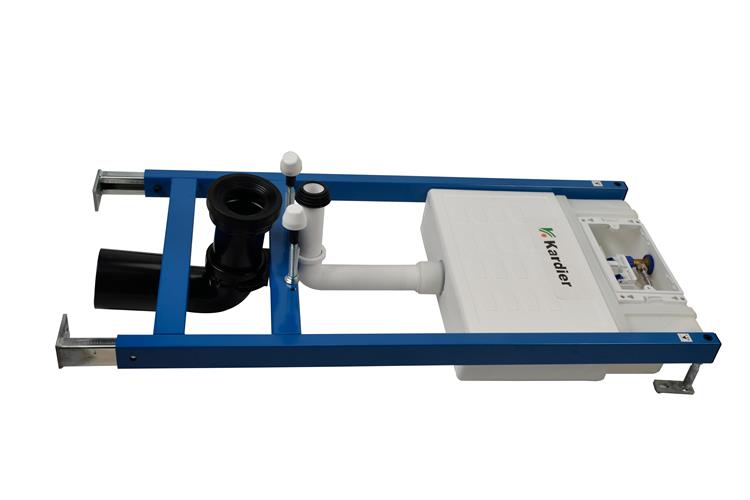

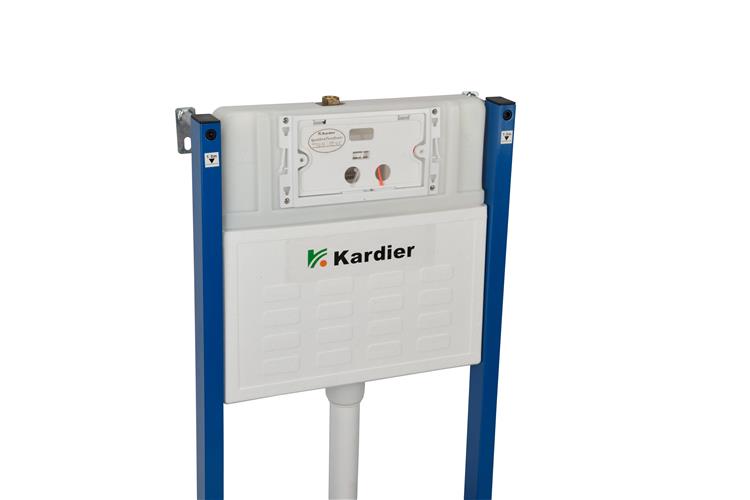

Hideaway pneumatic toilet cistern, also name as: concealed cistern air flush or concealed cistern pneumatic flush or pneumatic cisterns. suit for wall mounted toilet bowl, Pneumatic cistern with standard A frame with acrylic material white color & black color air push dual button, for wall hung pan toilet, 127mm thickness body.
Special point:
√ Pneumatic type concealed cistern, for wall hung toilet use

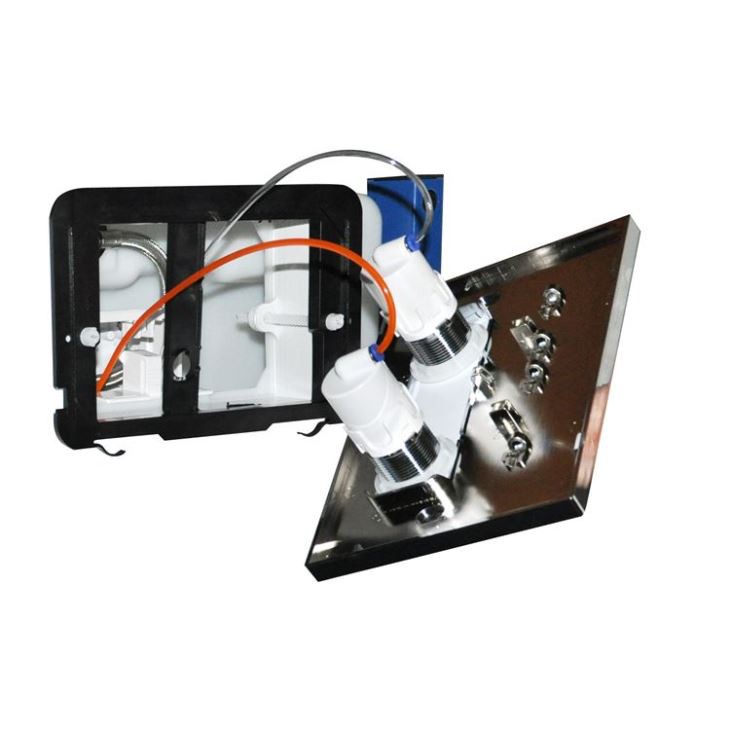

√ Pneumatic flush plate have white and black two color, can fix directly with cistern; if you want to install the flush plate in other place which more easy for pushing the button, you can choose the small pneumatic button

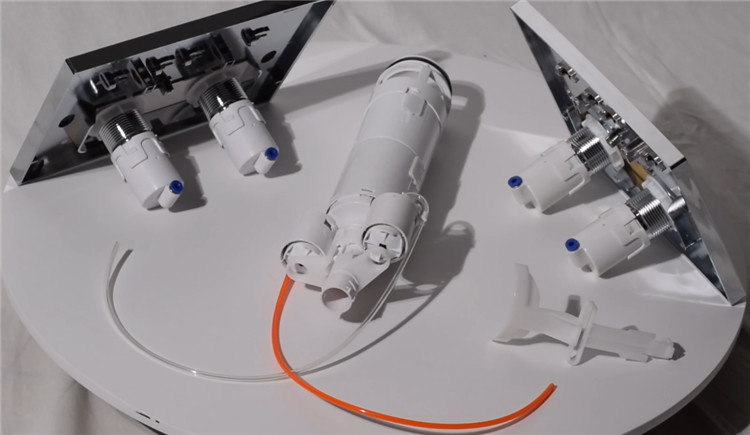

√ There have two pipes connect with flush plate and flush valve, when we push the flush plate, the air will go inside and let the flushing valve pull up, then the water can be flushing out.
√ This is new type concealed cistern, suit for more special requirement.
Model NO. | 009A-3 | Certificate approval | NO |

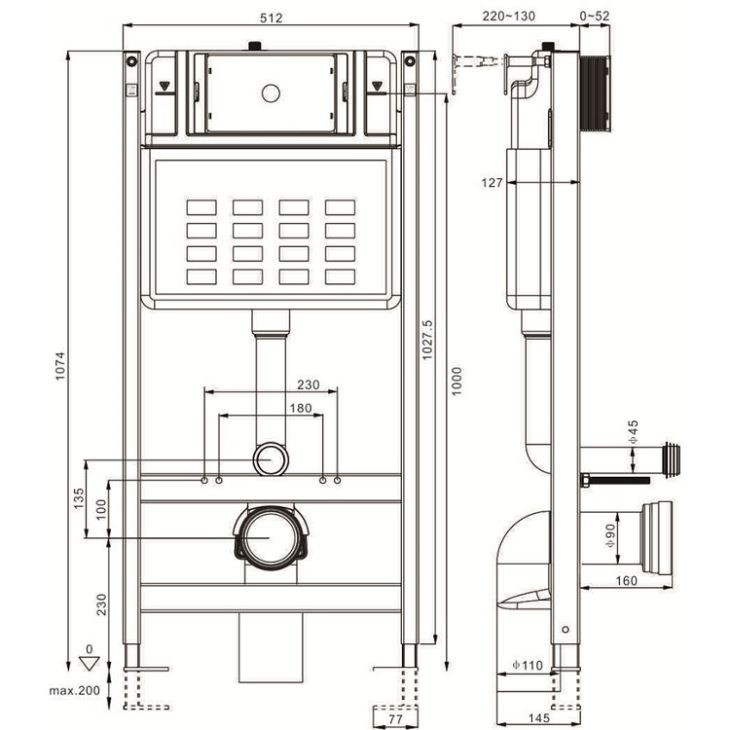

Dimension (mm) | 512x127x1042 | Flush pipe diameter | 110mm |
Carton Size (mm) | 523x150x1100 | Suit for | bath wall hung toilet |
Need wall thickness | ≥155mm | Material | HDPE and metal frame |
For wall | dry half wall; dry wall; pre-wall; pre-half wall | Flush volumn | 3L/ 6L max. 8L |
Panel size (mm) | 250x165 | Panel choices | Pneumatic flush button |
Panel color | black and white color | Flushing | Dual flush |
Frame undertake (kgs) | ≥400kgs | Delivery Time | LCL 7-10 days, 20GP & 40HQ need 20-25days |
Payment term | TT AND LC AT SIGHT | Price term | LCL-EXW SHUNDE, CHINA; 20GP & 40HQ: FOB SHUNDE, CHINA |
Package details | Carton packing, 1set/ctn; All fittings, include flush plate, frame, tank body and inner fittings and flush pipe | Loading qty | 0.0871CBM/SET 20GP: 305 sets 40GP: 650 sets 40HQ: 760sets |

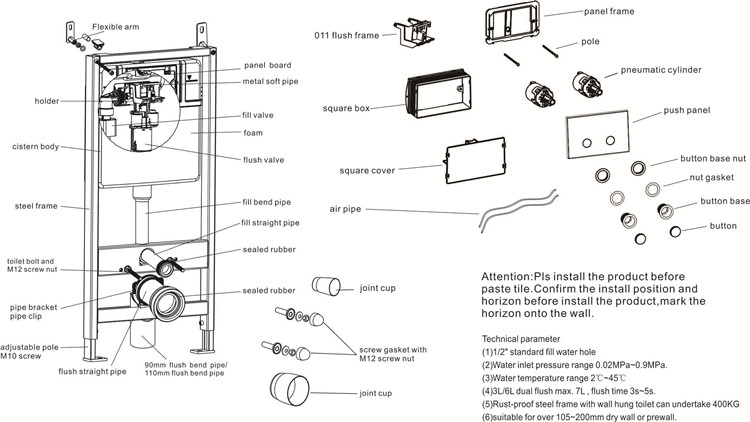

Product Details

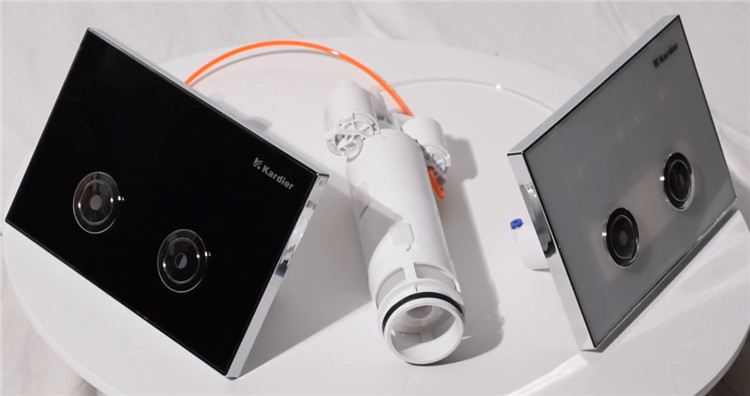

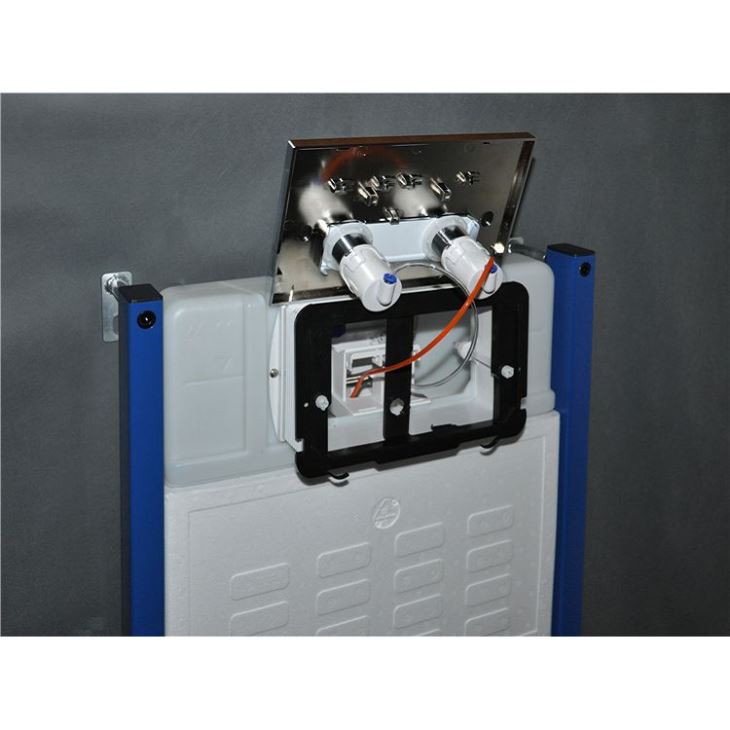

Concealed cistern flush panels

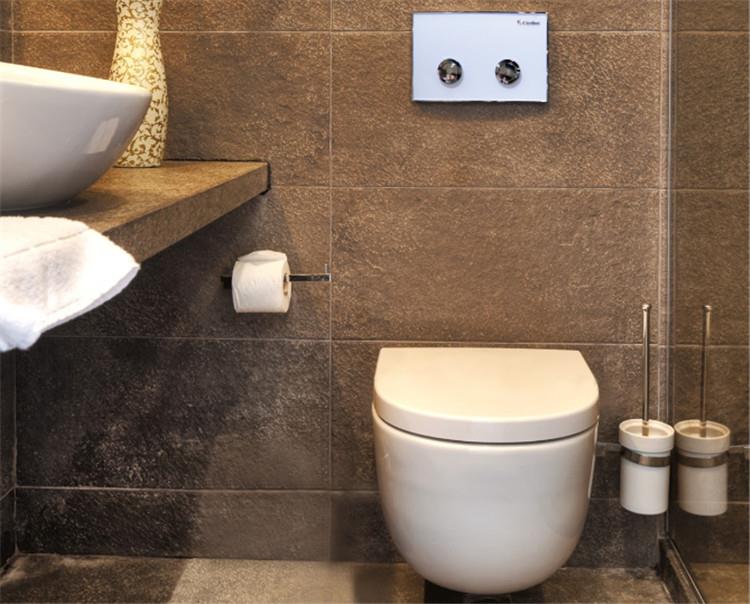

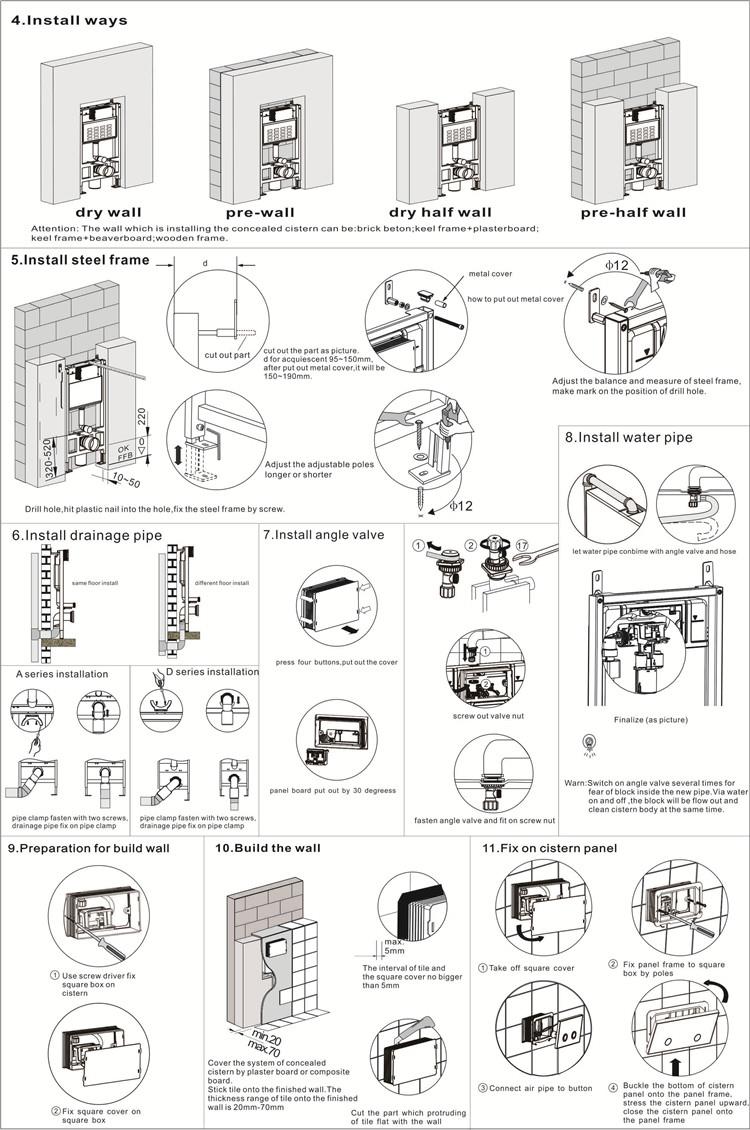

Concealed toilet cistern Installation

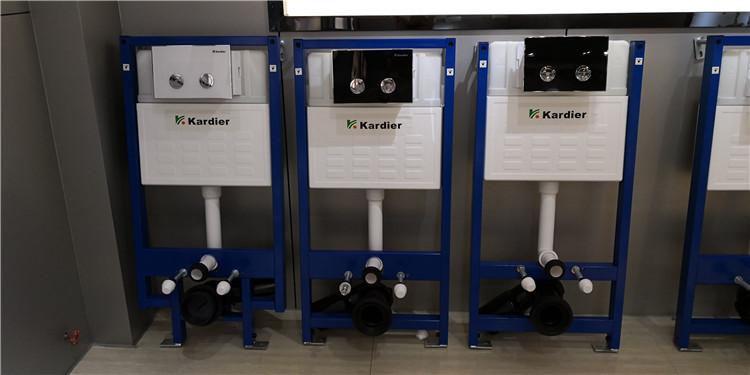

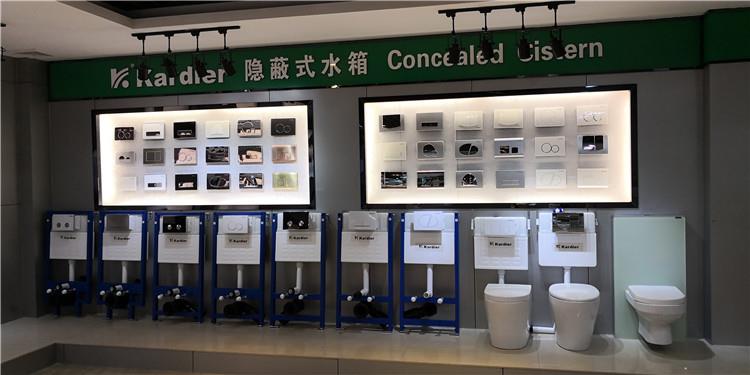

Kardier Products Range
