Pneumatic Concealed Cistern
We provide pneumatic concealed cistern, which also describe as: in wall cistern, suit for floor standing toilet, Pneumatic flush cistern without frame and with 116mm thickness cistern tank body for standing floor toilet, with air push button which is acrylic type and have white color and black color for choice.
Consult
now：+86-1892485-8611/ 8635/ 8981
Product details
Product Description
Pneumatic concealed cistern, also name as: hidden toilet flush cistern or concealed system toilet or hideaway pneumatic cistern. suit for standing floor toilet, Pneumatic flush cistern without frame and with 116mm thickness cistern tank body for standing floor toilet, with air push button which is acrylic type and have white color and black color for choice.
Special point:

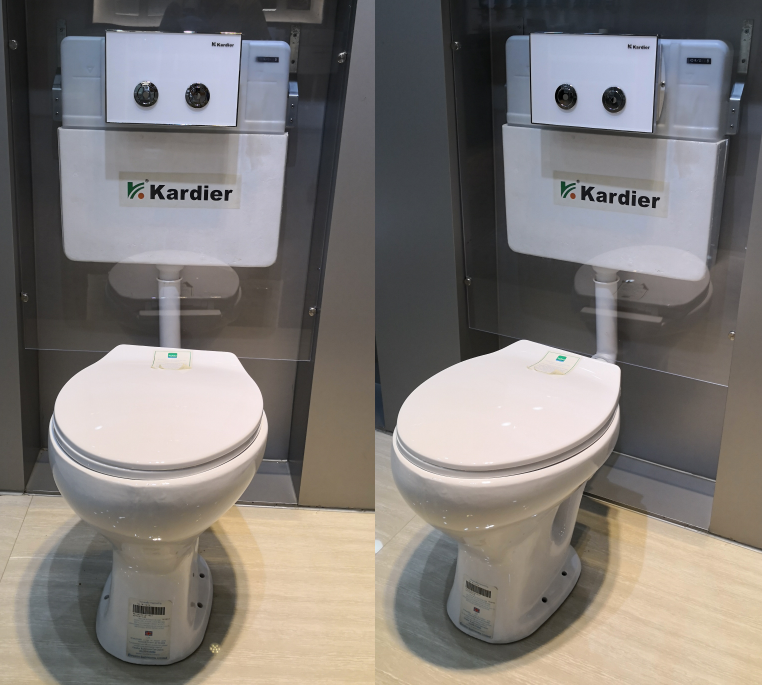

Ø Suit for floor mounted toilet and pneumatic type in-wall cistern

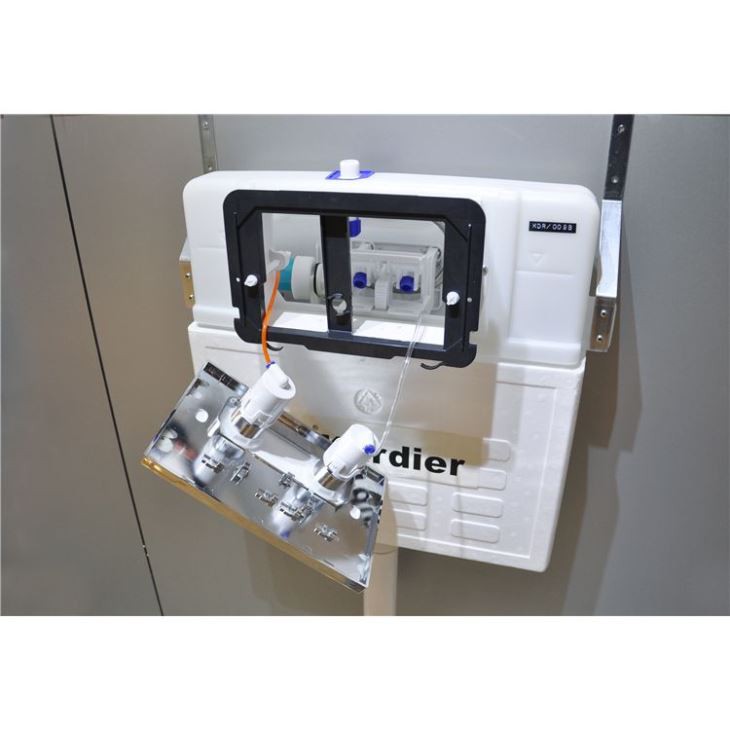

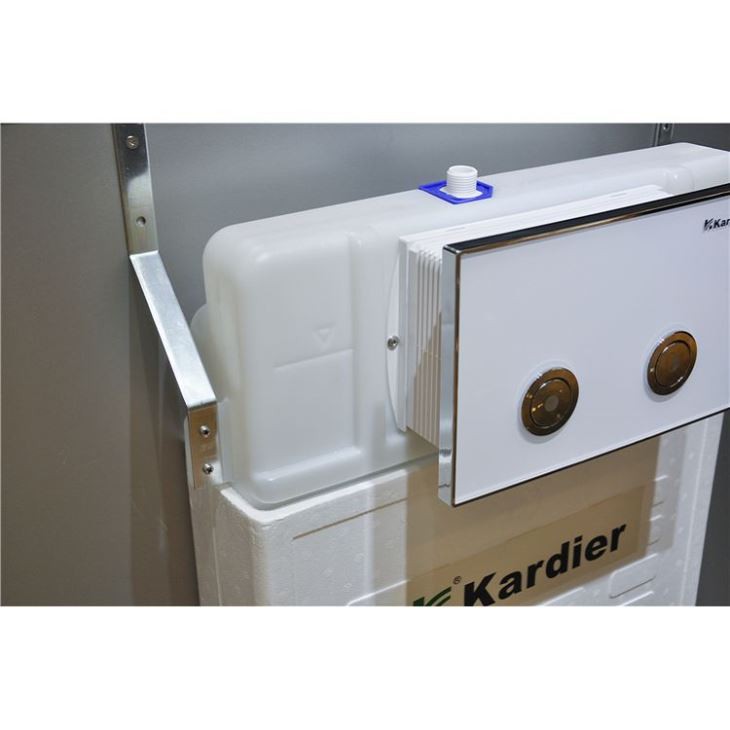

Ø Without frame, with SS bracket to fix the cistern to the wall
Ø 110mm thickness tank body

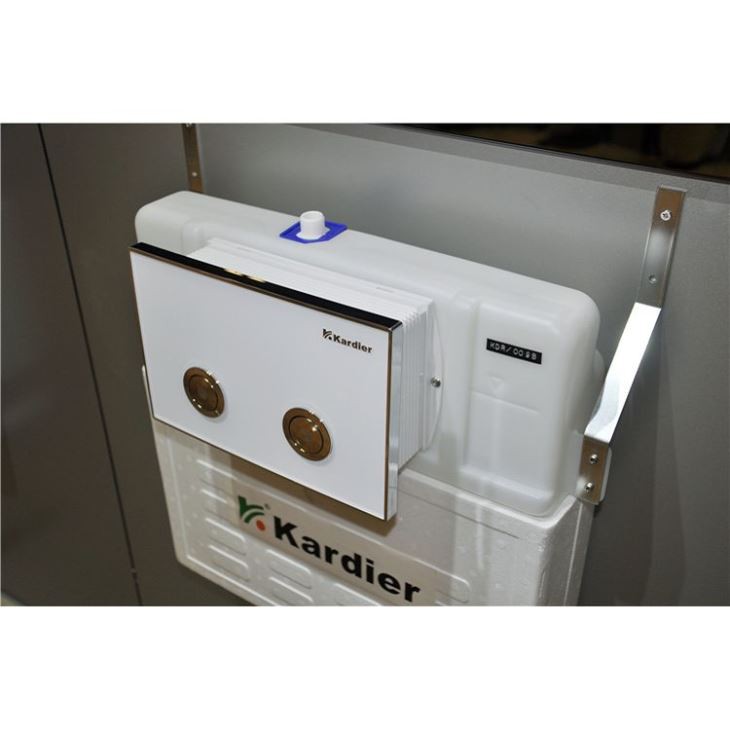

Ø Pneumatic button is fixing directly to the cistern, if you want to fix button in other place to easy pushing button, we also have other choice, please contact with us for more information
Ø Pneumatic cistern is pushing the button and the air go through the air pipe and pushing the flush valve up to flushing water
Item No | 009B-3 | Certificate approval | NO |

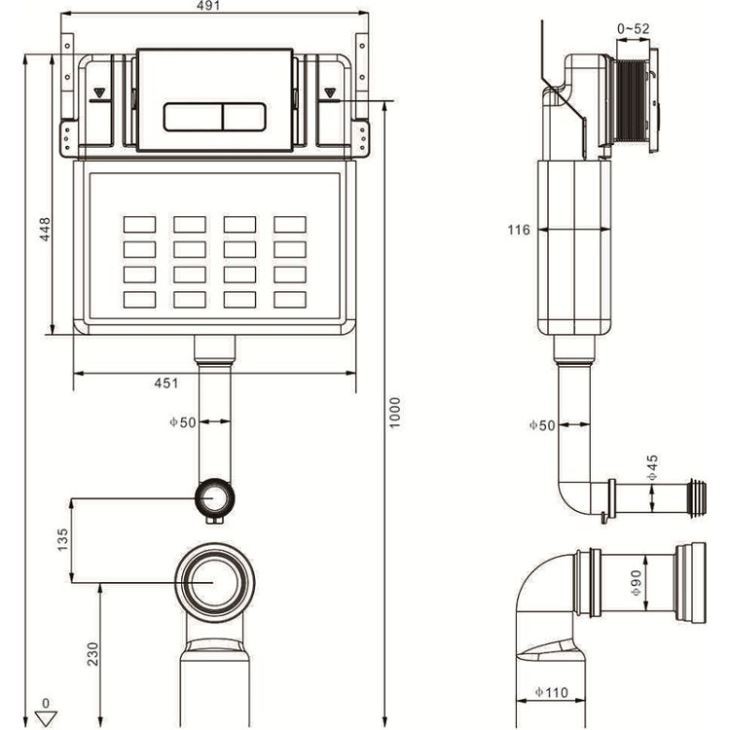

Dimension (mm) | 491x116x1074mm | Flush pipe φ | 110mm |
Carton Size (mm) | 500x127x750mm | Suit for | back to wall toilet pan |
Need wall thickness | ≥155mm | Material | HDPE |
For wall | pre-wall; dry wall; dry half wall; pre-half wall | Flushing volumn | 3L/ 6L max. 8L |
Panel size (mm) | 250x165 | Panel choices | Pneumatic plate |
Panel color | black and white color | Flushing | Dual flush |
Frame undertake (kgs) | ≥400 | Delivery Time | LCL 7-10 days, 20GP & 40HQ need 20-25days |
Payment term | TT AND LC AT SIGHT | Price term | LCL: EXW SHUNDE, CHINA; 20GP and 40HQ: FOB SHUNDE, CHINA |
Package details | Carton packing,1set/ctn; All fittings, include flush plate, frame, tank body and inner fittings and flush pipe | Loading qty | 0.21CBM/4SET 530 sets/20GP 1100 sets /40GP 1270sets /40HQ |
Product Details

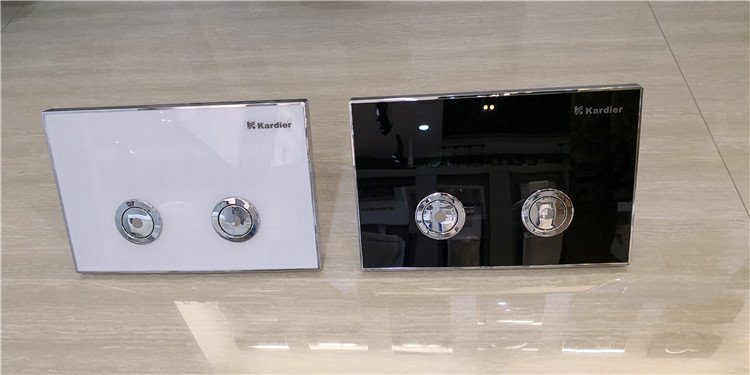

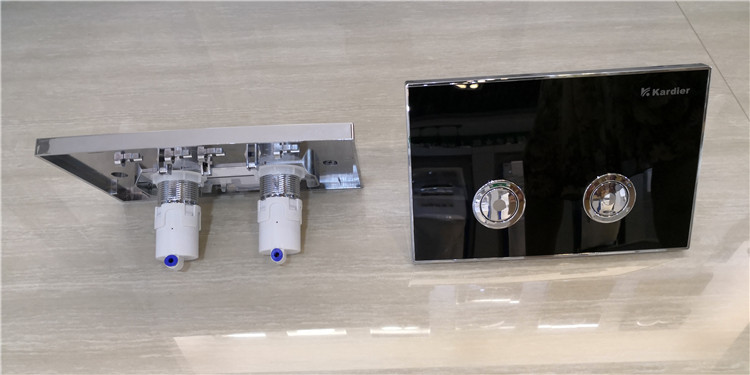

Concealed cistern flush panels

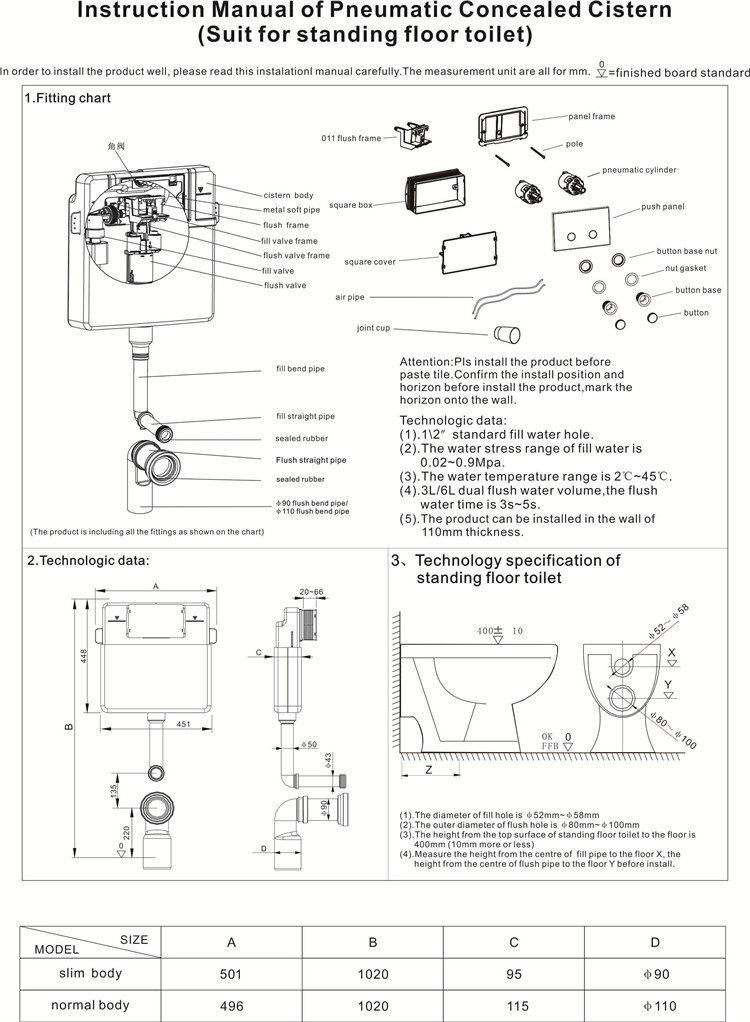

Concealed toilet cistern Installation

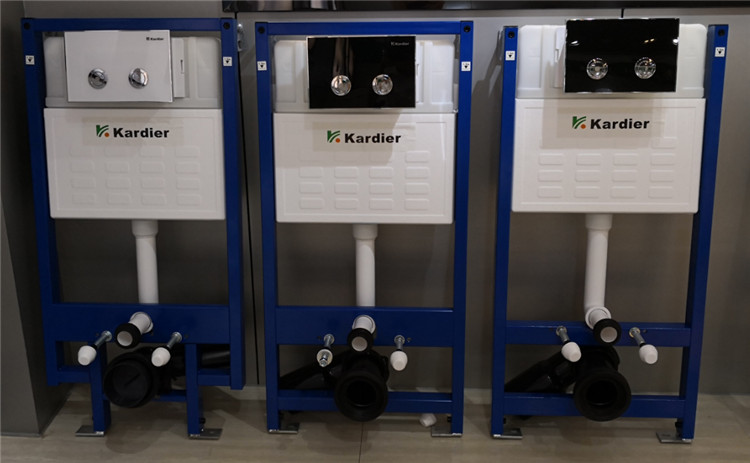

Kardier Products Range
