Concealed Pneumatic Toilet Tank

We provide concealed pneumatic toilet tank, which also describe as: wall mounted toilet frame, suit for wall hung toilet pan, Pneumatic toilet cistern with high standard T frame and 127mm tank body for wall mounted toilet pan, and with Acrylic type black and white color air push plate.

Product classification：Pneumatic Concealed Cistern

Consult now：+86-1892485-8611/ 8635/ 8981

Related products

Product details

Product Description

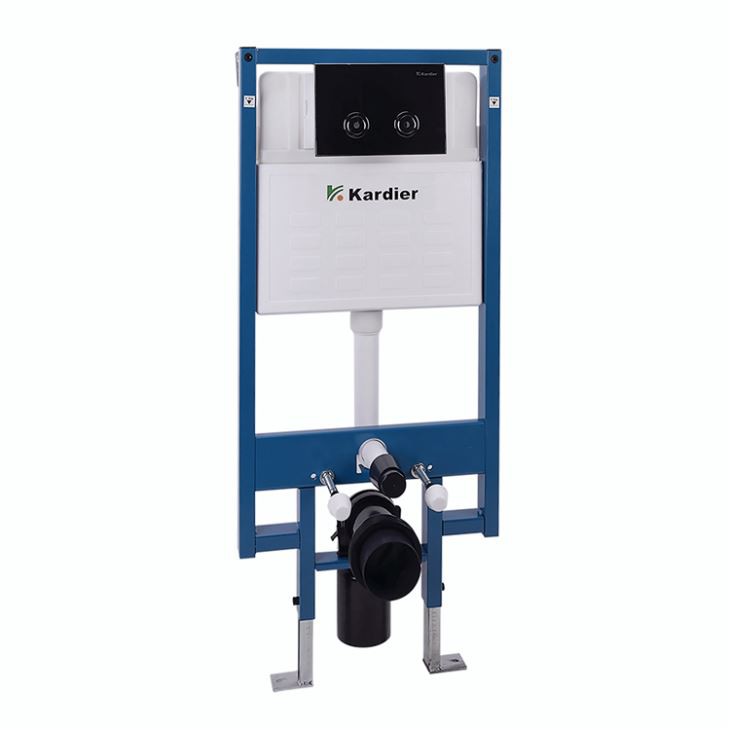

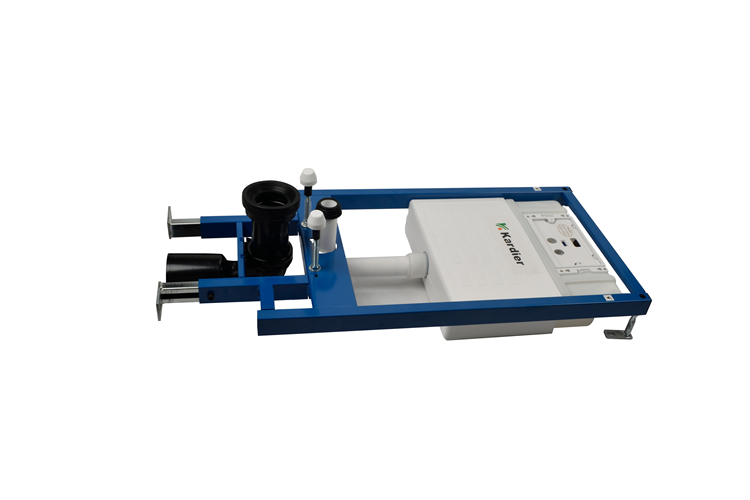

Concealed pneumatic toilet tank, also name as: in wall toilet cistern or concealed tank toilet or pneumatic flush cisterns. suit for wall mounted w.c, Pneumatic toilet cistern with high standard T frame and 127mm tank body for wall mounted toilet pan, and with Acrylic type black and white color air push plate.

Malfunction and solve way of fill valve

Malfunction	Solve way
1.The water level too high or too low	Adjust water level
2.can not stop water	Wash sealed rubber and mandrill
3.fill water speed slow	Wash filter, adjust water stress to higher
4.other questions	Pls consult with professional technician

Special point:

● There have two air pipes connect with push button and flush valve, when we push button, air will go inside pull up flush valve, then the water will flushing out.

● Pneumatic push button have white and black two colors, push buttons can fix with cistern directly; if you want install the flush plate in other place for more easy pushing the button, you can choose the small pneumatic button

● Concealed cistern with pneumatic push button, for wall hung toilet pan

Item code	009T-3	Certificate	NONE
Dimension (mm)	512x127x1054mm	Flush pipe φ	110
Carton Size (mm)	523x150x1110mm	Suit for	wall mounted toilet pan
Need wall thickness	≥120mm	Material	metal frame and frame
For wall	pre-half wall; dry wall; pre-wall; dry half wall;	Flushing volumn	3L/ 6L max. 8L
Panel size (mm)	250x165	Panel choices	Pneumatic flush plate
Panel color	black and white color	Flushing	Dual flush
Frame undertake (kgs)	≥400	Delivery Time	LCL 7-10 days, 20GP & 40HQ need 20-25days
MOQ	50 PCS	Port of loading	SHUNDE, CHINA / SHENZHEN, CHINE/ GUANGZHOU, CHINA
Payment term	TT and LC at sight	Price term	LCL-EXW SHUNDE, CHINA; 20GP & 40HQ: FOB SHUNDE, CHINA
