Pneumatic Concealed Inwall Cistern
We provide pneumatic concealed in-wall cistern, which also describe as: back to wall concealed cistern, suit for wall hung toilet, Acrylic white and black Air push plate concealed cistern with high class D frame and 127mm thickness cistern tank body, for wall hung toilet.
Consult
now：+86-1892485-8611/ 8635/ 8981
Product details
Product Description
Pneumatic concealed in-wall cistern, also name as: pneumatic toilet water tank or concealed tank water closet or pneumatic dual flush cistern. suit for back to wall toilet pan, Acrylic white and black Air push plate concealed cistern with high class D frame and 127mm thickness cistern tank body, for wall hung toilet.
Item | 009D-3 | Certificate approval | NO |
Dimension (mm) | 512x127x1042mm | Flush pipe diameter | 110mm |
Carton Size (mm) | 523x150x1100mm | Suit for | bath wall hung pan |
Need wall thickness | ≥155mm | Material | metal frame +HDPE |
For wall | pre-half wall; dry wall; pre-wall; dry half wall; | Flushing volumn | 3L/ 6L max. 8L |
Panel size (mm) | 250x165 | Panel choices | air type flush plate |
Panel color | black and white color | Flushing | Dual flush |
Frame undertake (kgs) | ≥400 | Delivery Time | LCL 7-10 days, 20GP & 40HQ need 20-25days |
Package details | Carton packing, 1set/ctn; All fittings, include plate, frame, tank body and inner fittings and flush pipe | Loading qty | 0.0871CBM/SET 20GP: 305 sets 40GP: 650 sets 40HQ: 760sets |
Special point:
● Concealed cistern with pneumatic push button,for wall hung toilet pan
● There have two air pipes connect with push button and flush valve, when we push button, air will go inside pull up flush valve, then the water will flushing out.
● Pneumatic push button have white and black two colors, push buttons can fix with cistern directly; if you want install the flush plate in other place for more easy pushing the button ,you can choose the small pneumatic button
● The water temperature range is 2°-45°
● This is new type concealed cistern ,suit for more special requirement.

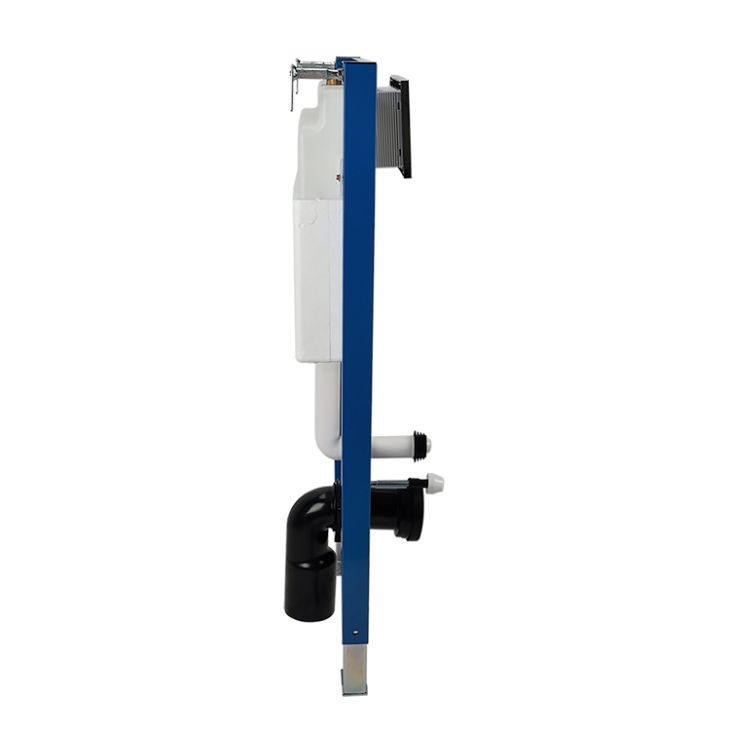

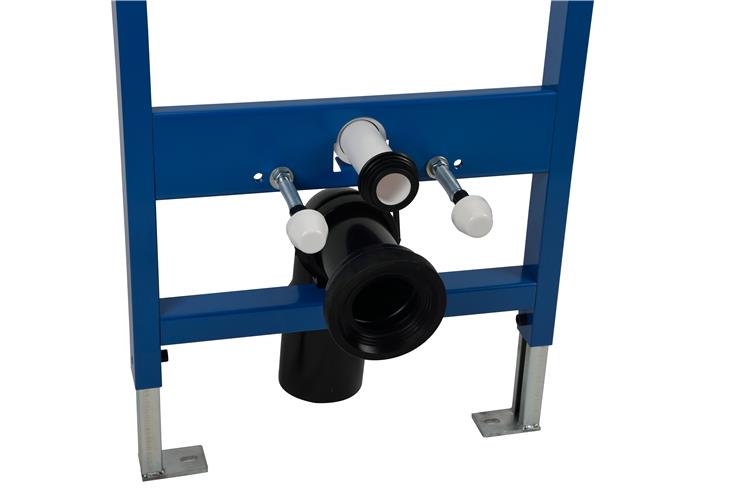

Product Details

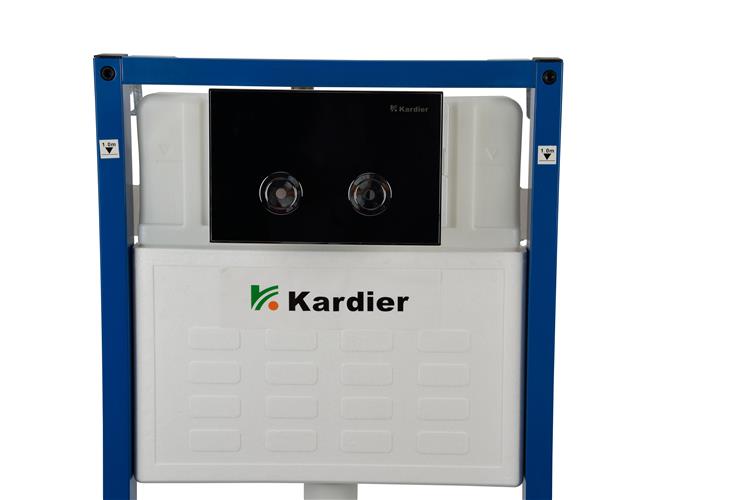

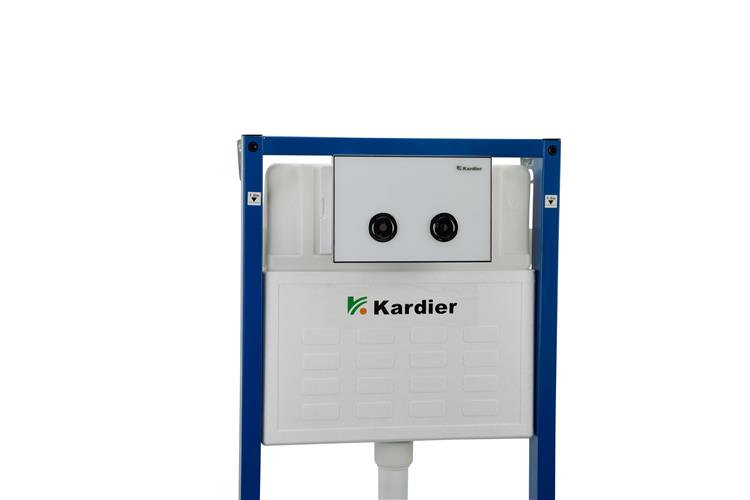

Concealed cistern flush panels

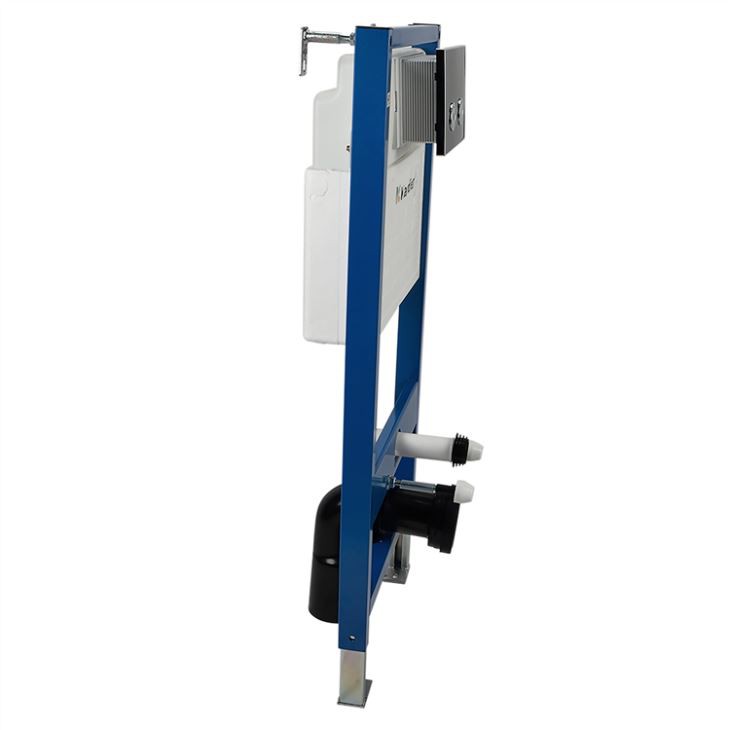

Concealed toilet cistern Installation
