Super Slim Concealed Cistern
We provide super slim concealed cistern,which also describe as: wall hung toilet frame,suit for squatting pan, Super slim Standard A frame Concealed Flush Cistern for wall mounted toilet with 96mm tank body thickness, slim wall required.
Consult
now：+86-1892485-8611/ 8635/ 8981
Product details
Product Description
Super slim concealed cistern, also name as: slimline toilet cistern or slimline concealed toilet cistern or slim concealed flushing tank. suit for lavatory pan, Super slim Standard A frame Concealed Flush Cistern for wall mounted toilet with 96mm tank body thickness, slim wall required.

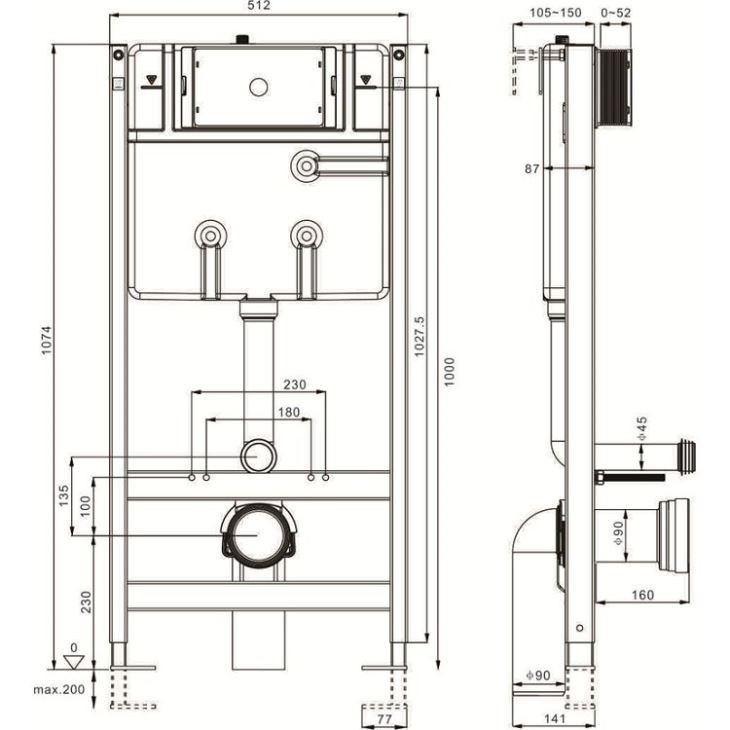

Model code. | 011A | Certificate | CE. WRAS. WATERMARK. WELS |
Dimension (mm) | 512x87x1027.5mm | Flush pipe diameter | 90mm |
Carton Size (mm) | 542x105x1100 mm | Suit for | back to wall toilet |
Need wall thickness | ≥125mm | Material | HDPE + normal metal frame |
For wall | dry wall; pre-wall; dry half wall; pre-half wall | Flush volumn | 3L/ 6L max. 8L |
Panel size (mm) | 250x165mm | Panel choices | all choices except O plate |
Panel color | white/ chrome/ satin/ black/ gold/ silver etc | Flushing volumn | Dual flush |
Frame undertake (kgs) | ≥400 | Delivery Time | LCL 7-10 days, 20GP & 40HQ need 20-25days |
Payment term | TT and LC at sight | Price term | LCL: EXW SHUNDE, CHINA; 20GP and 40HQ: FOB SHUNDE, CHINA |
Package details | Carton packing, 1set/ctn. flush pipe. flush pipe packing size: 605x430x508mm (12pcs/ctn) | Loading qty | cistern: 0.0632CBM/CTN Total: 0.0742CBM/SET 20GP: 350 sets 40GP: 770sets 0HQ: 890sets |
Special point:
■ Super slim with metal frame for wall hung toilet, suit for slim wall required, such as india market and Australia market.
■ Have watermark certificate and CE certificate and WRAS certificate
■ Standard with 90mm black flush bend pipe as per slim wall required. if needed can be change to 110mm black flush bend pipe
■ With Standard frame, if need high class frame can choose 011D, 011T item.

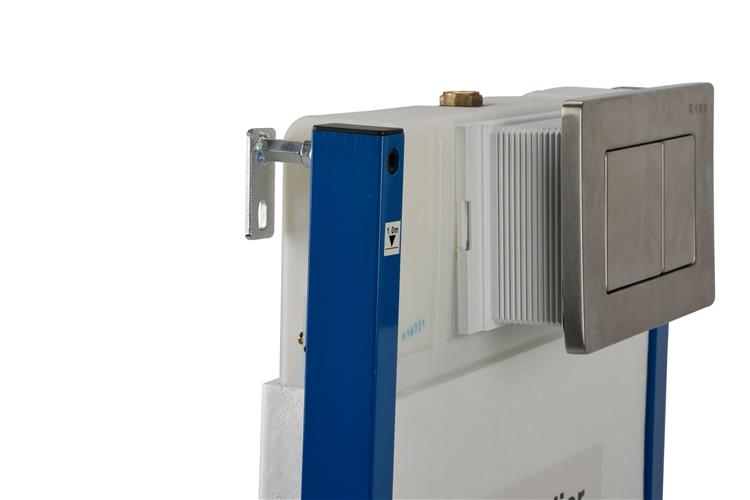

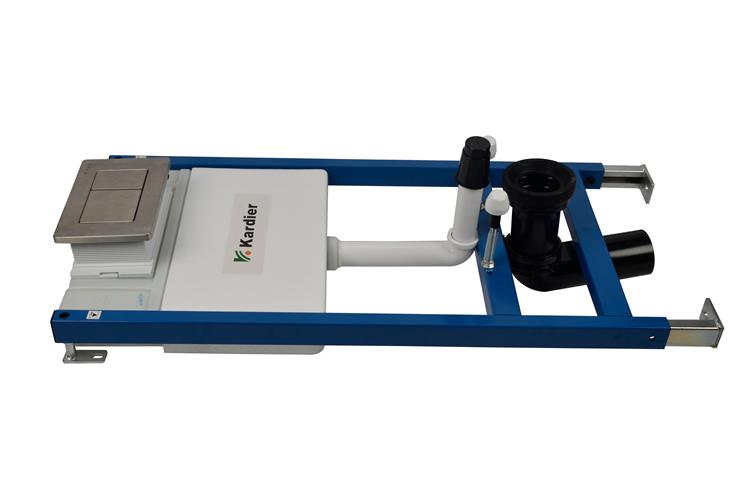

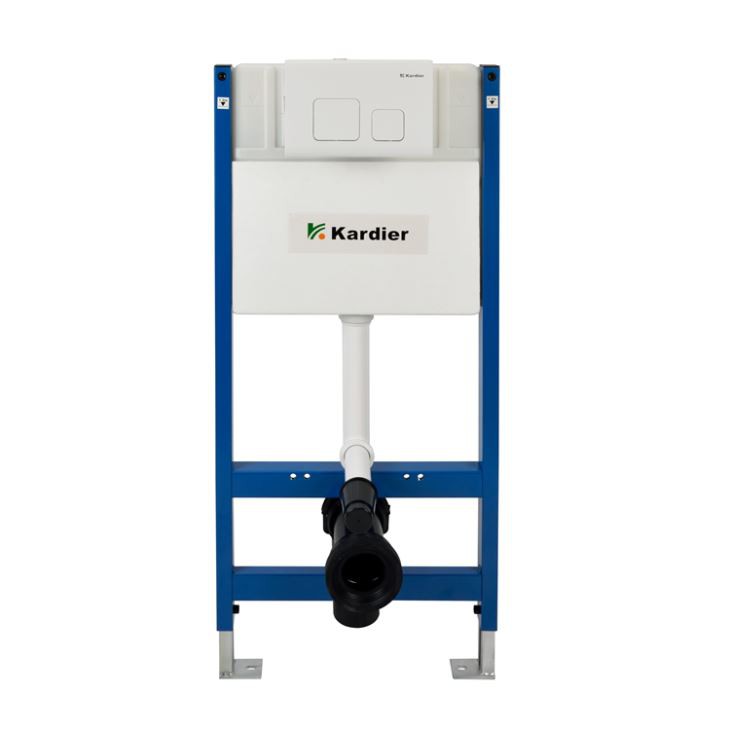

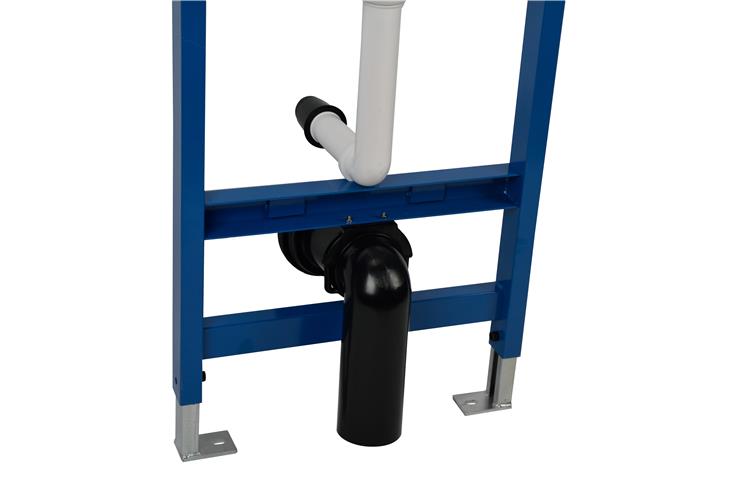

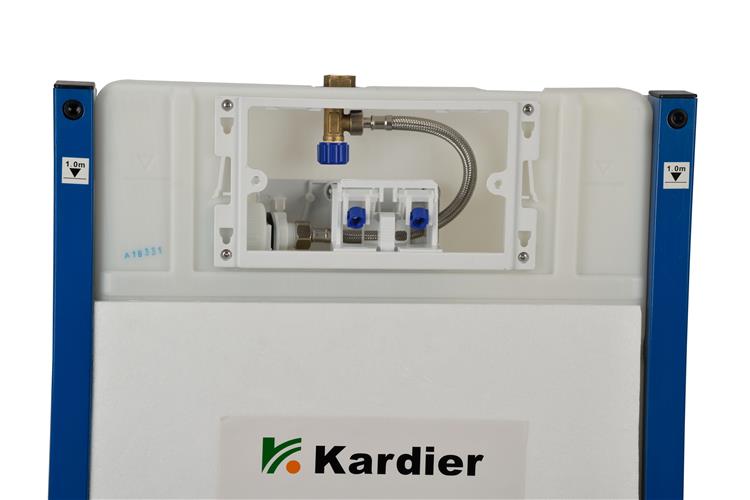

Product Details

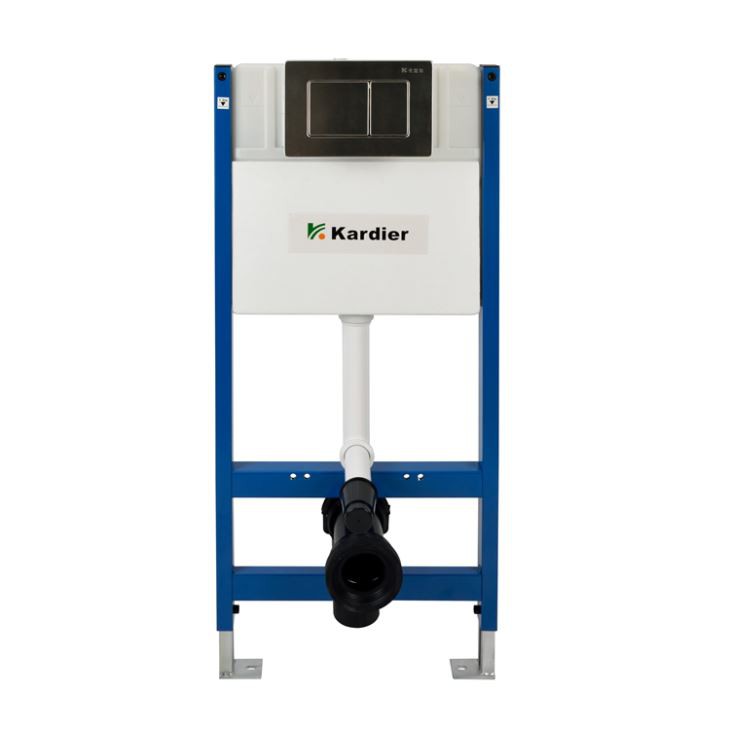

Concealed cistern flush panels

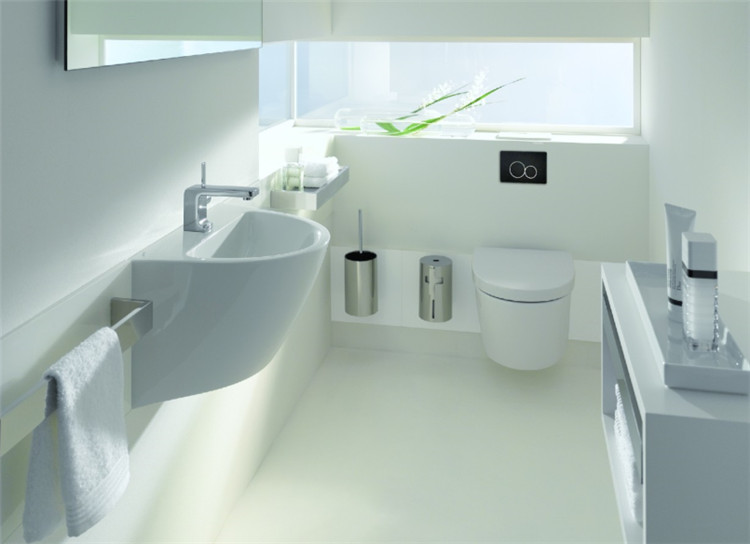

Concealed toilet cistern Installation
Kardier Products Range
Hot Tags: super slim concealed cistern, China, suppliers, manufacturers, factory, price
