Slim Toilet Concealed Cistern

We provide slim toilet concealed cistern, which also describe as: slimline toilet flush, suit for wall mounted w.c, Super thin High class D frame Concealed Flush Tank for wall hung pan with 96mm tank body thickness, thin wall require.

Product classification：Slim Concealed Cistern

Consult now：+86-1892485-8611/ 8635/ 8981

Related products

Product details

Product Description

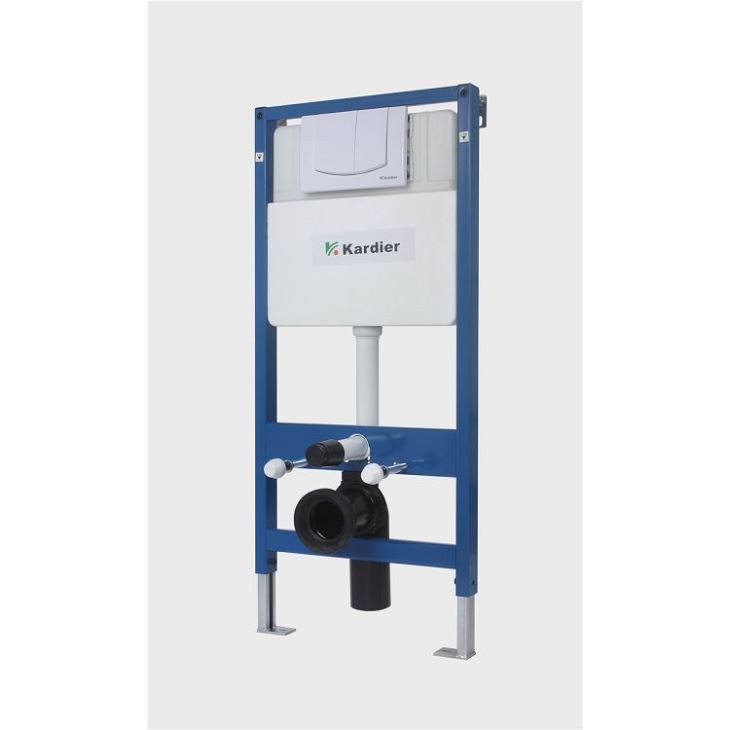

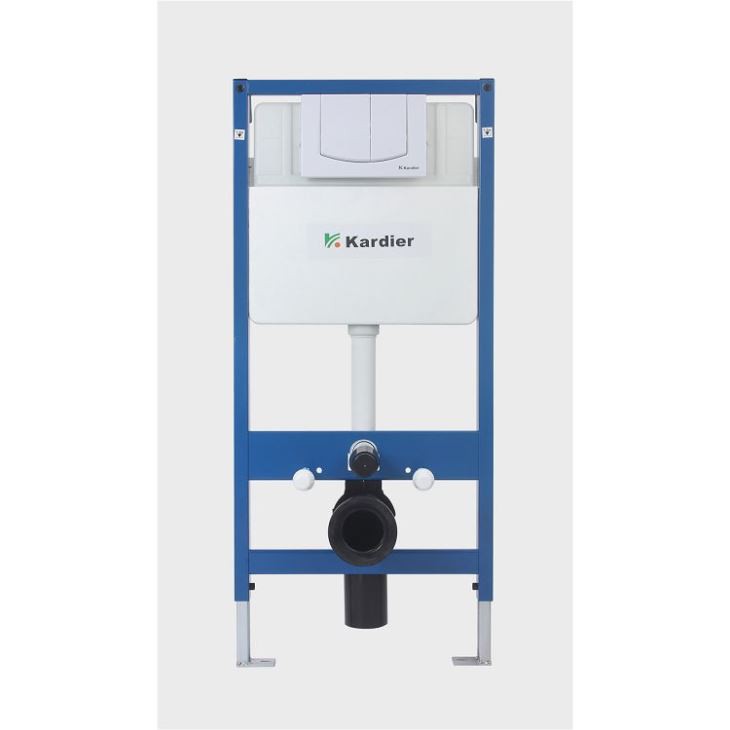

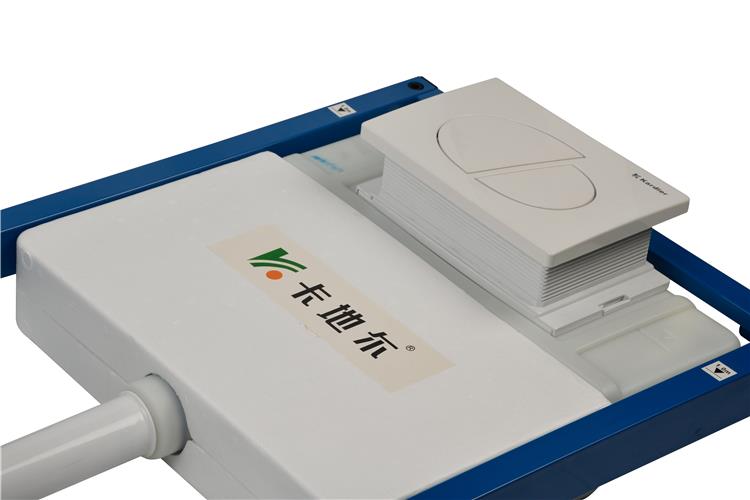

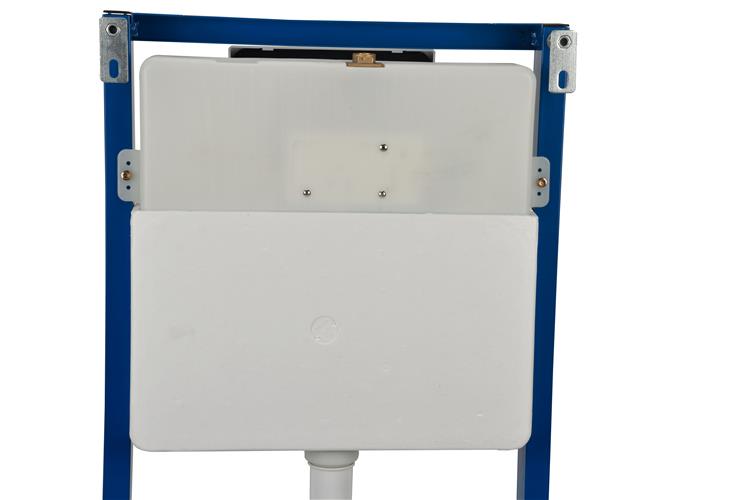

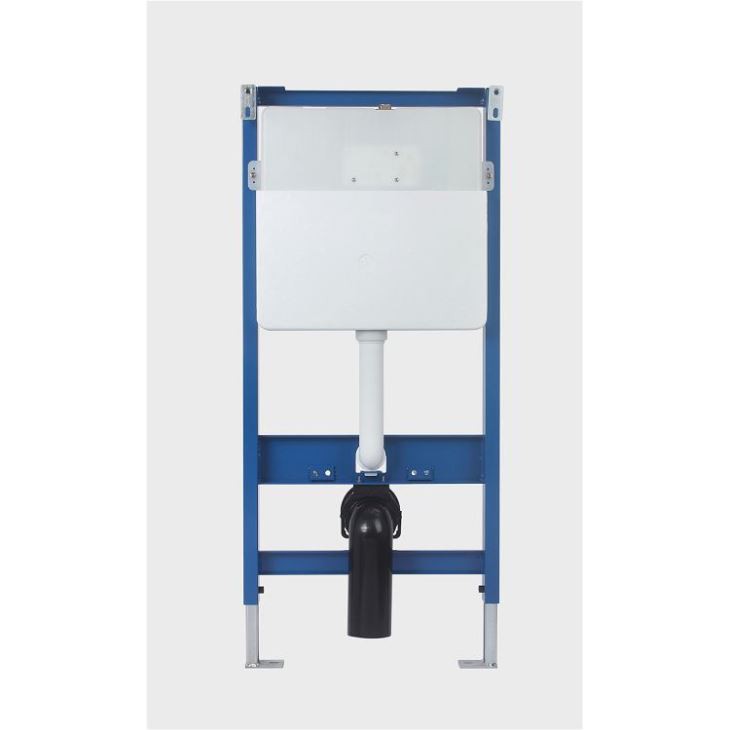

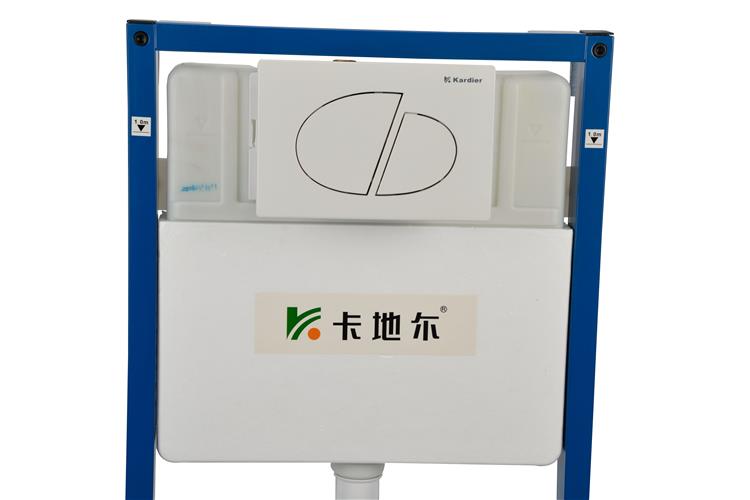

Slim toilet concealed cistern, also name as: 8cm concealed cistern or slimline concealed cistern frame or super slim wall mounted wc. suit for back to wall toilet, Super thin High class D frame Concealed Flush Tank for wall hung pan with 96mm tank body thickness, thin wall require.

Special point:

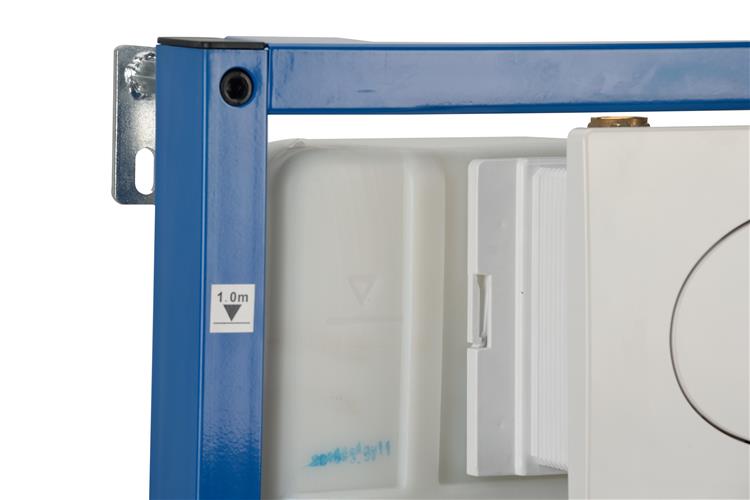

√ With high class metal frame super slim concealed cistern for wall hung toilet use

√ With 90mm flush pipe for standard fitting, also can choose 110mm if require

√ Cistern tank body with 96mm thickness, can fix in 110mm thickness slim wall

√ If need more economic similar item can choose 011A, if like another foot fixing way, can choose 011T

Model NO.	011D	Certificate approval	CE/ WRAS/ WATERMARK/ WELS

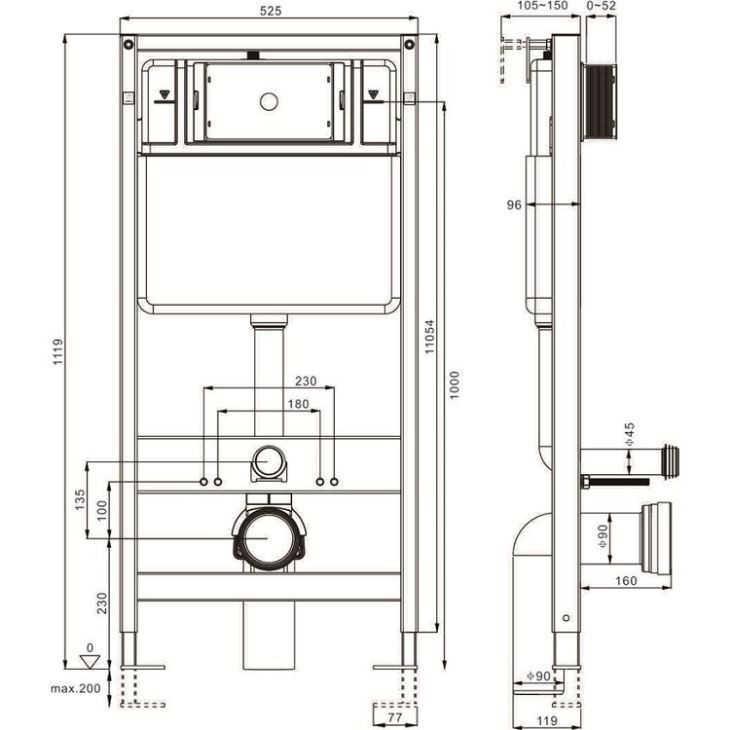

Dimension (mm)	525x96x1054mm	Flush pipe φ	90mm
Carton Size (mm)	542x105x1100 mm	Suit for	Bathroom wall mounted toilet
Need wall thickness	≥125mm	Material	HDPE +metal frame D
For wall	dry wall and pre-wall and dry half wall and pre-half wall	Flush volumn	3L/ 6L max. 8L
Panel size (mm)	250x165	Panel choices	Q/W/M/H/F/A/B/C/D
Panel color	gold/ chrome/ satin/ white/ black/ silver etc	Flushing	Dual flush
Frame undertakes	≥400kgs	Delivery Time	LCL 7-10 days, 20GP & 40HQ need 20-25days
MOQ	50 PCS	Port of loading	SHUNDE, CHINA / SHENZHEN, CHINE/ GUANGZHOU, CHINA

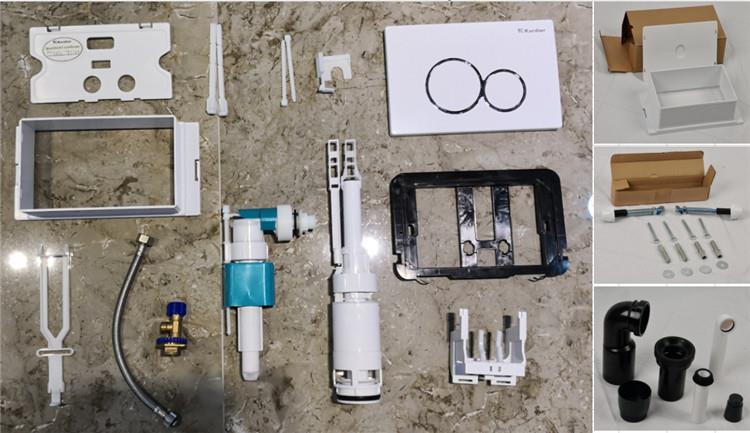

Package details	Carton packing, 1set/ctn; All fittings, frame, tank body with inner fittings and flush pipe. flush pipe packing size: 605x430x508mm (12pcs/ctn)	Loading qty	cistern: 0.0632CBM/CTN Flush pipe: 0.132CBM/CTN( 12pcs/ctn) Total: 0.0742CBM/SET 20GP: 350 sets 40GP: 770sets 40HQ: 890sets
