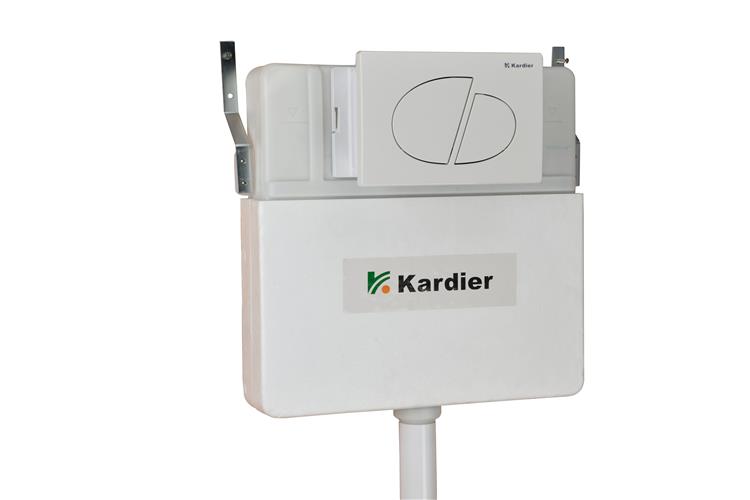

Concealed Cistern 80mm
We provide concealed cistern 80mm, which also describe as: slim cistern wall hung, suit for lavatory pan, thin Without frame Concealed Toilet Cistern for lavatory pan with 96mm tank body thickness, slim wall require.
Consult
now：+86-1892485-8611/ 8635/ 8981
Product details
Product Description
Concealed cistern 80mm, also name as: 80mm concealed cistern or slim flush tank toilet or concealed tank. suit for squatting pan, thin Without frame Concealed Toilet Cistern for lavatory pan with 96mm tank body thickness, slim wall require.
Item. | 011C | Certificate | NO |

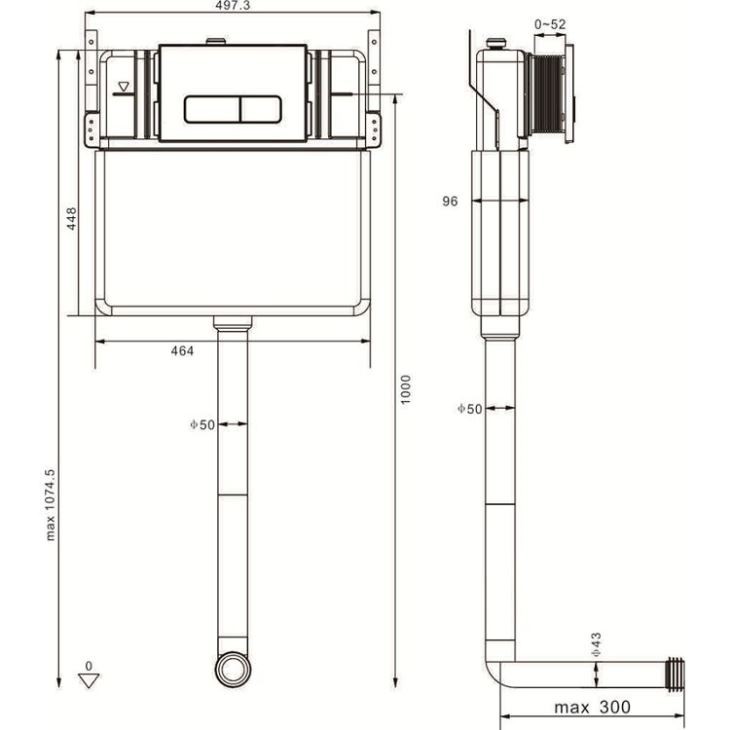

Dimension (mm) | 497.3x96x1074.5mm | Flush pipe size | 90 |
Carton Size (mm) | 741x540x525mm (5sets/ctn) | Suit for | Bathroom lavatory toilet |
Need wall thickness | ≥110mm | Material | HDPE |
For wall | dry wall; pre-wall; dry half wall and pre-half wall | Flushing volumn | 3L/ 6L max. 8L |
Panel size | 250x165mm | Panel choices | all choices except O plate |
Panel color | silver/ chrome/ satin/ white/ black/ gold/ etc | Flushing | Dual flush |
Frame undertake | ≥400kgs | Delivery Time | LCL 7-10 days, 20GP & 40HQ need 20-25days |
MOQ | 50 PCS | Port of loading | SHUNDE, CHINA / SHENZHEN, CHINE/ GUANGZHOU, CHINA |
Payment term | TT and LC at sight | Price term | LCL: EXW SHUNDE, CHINA; 20GP and 40HQ: FOB SHUNDE, CHINA |
Malfunction and solve way of fill valve
Malfunction | Solve way |
1.The water level too high or too low | Adjust water level |
2.can not stop water | Wash sealed rubber and mandrill |
3.fill water speed slow | Wash filter,adjust water stress to higher |
4.other questions | Pls consult with professional technician |
Special points:
☆ Super slim, super slim ,super slim
☆ For squatting pan use
☆ Multiple flush plates for choices
☆ High class and easy clean

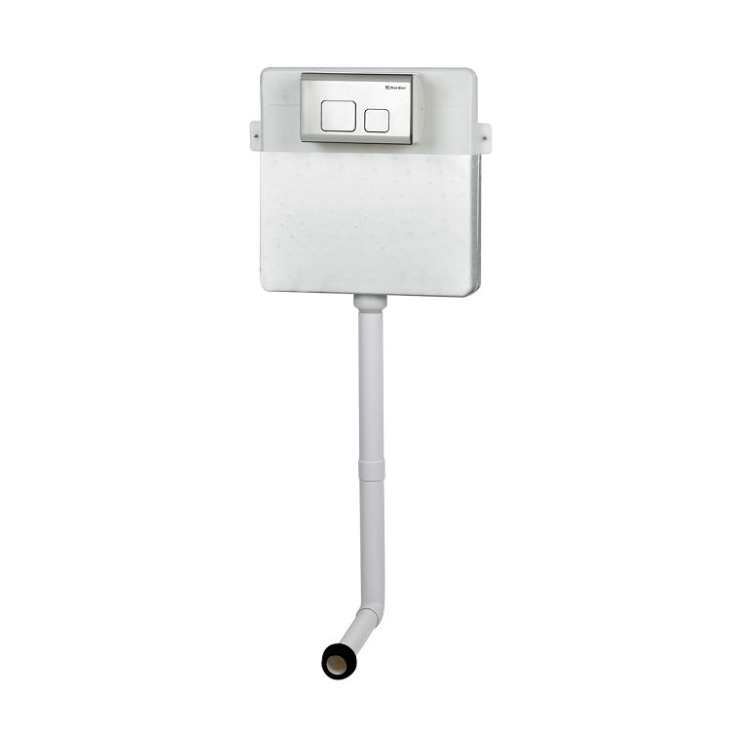

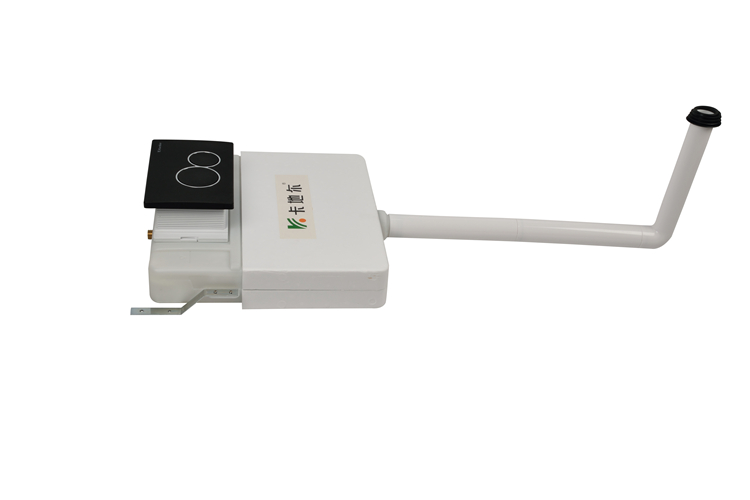

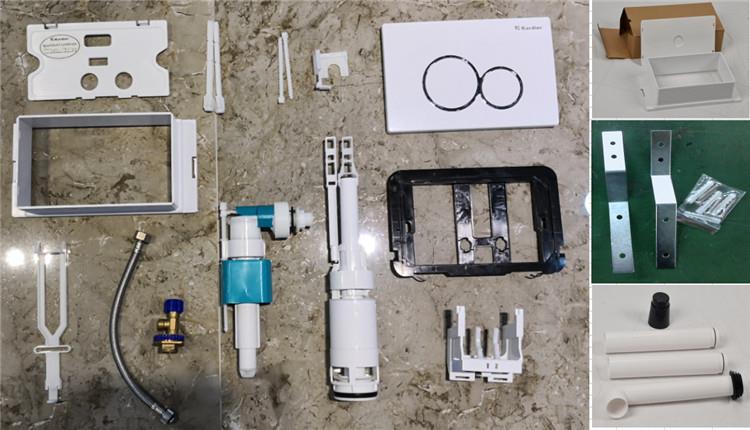

Product Details

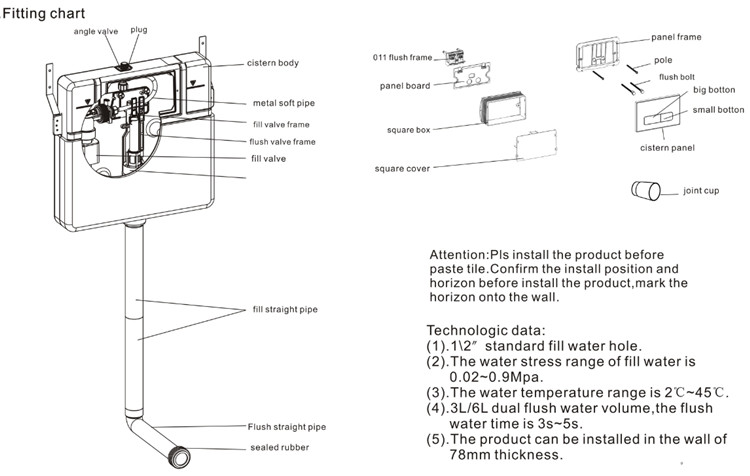

Concealed cistern flush panels

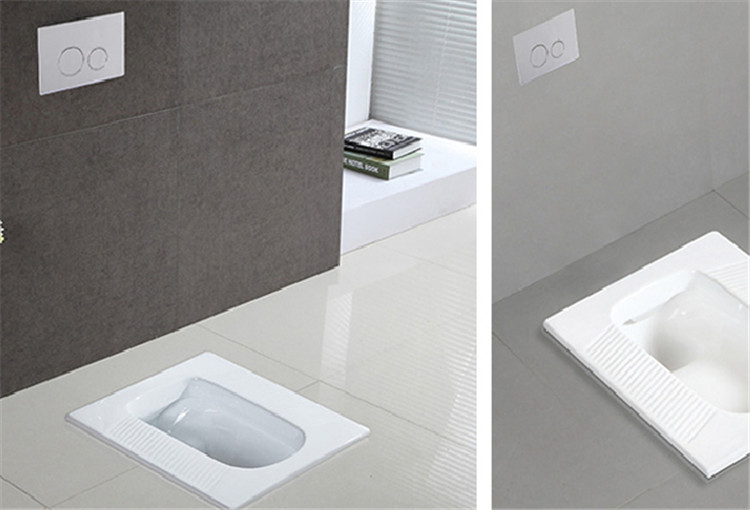

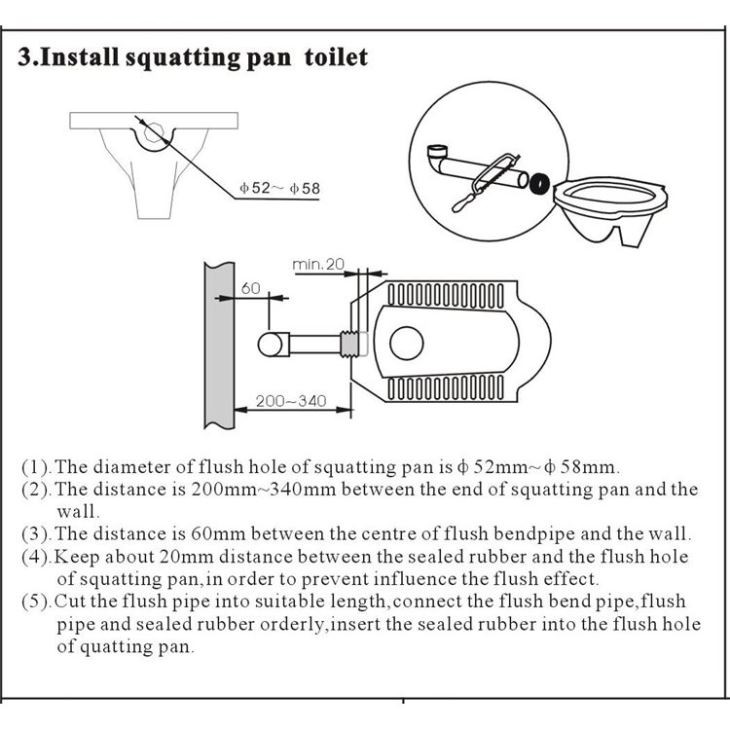

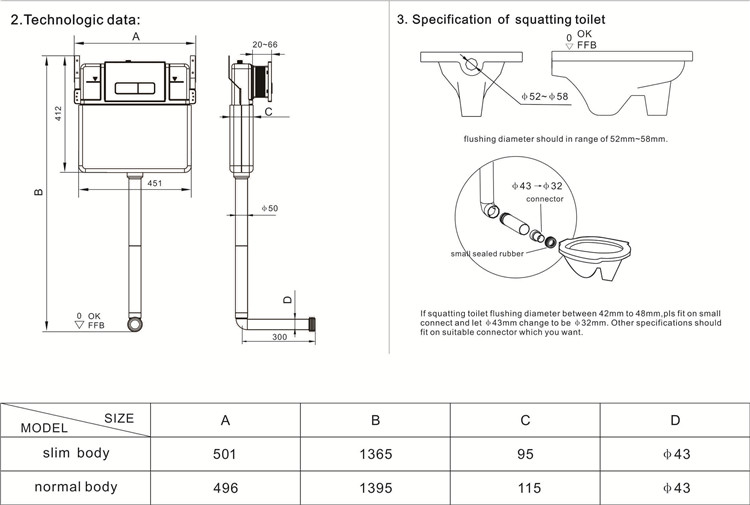

Concealed toilet cistern Installation
Kardier Products Range
