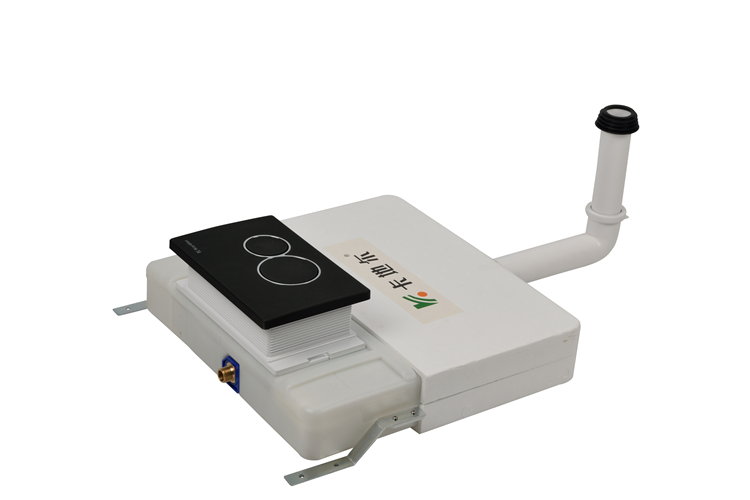

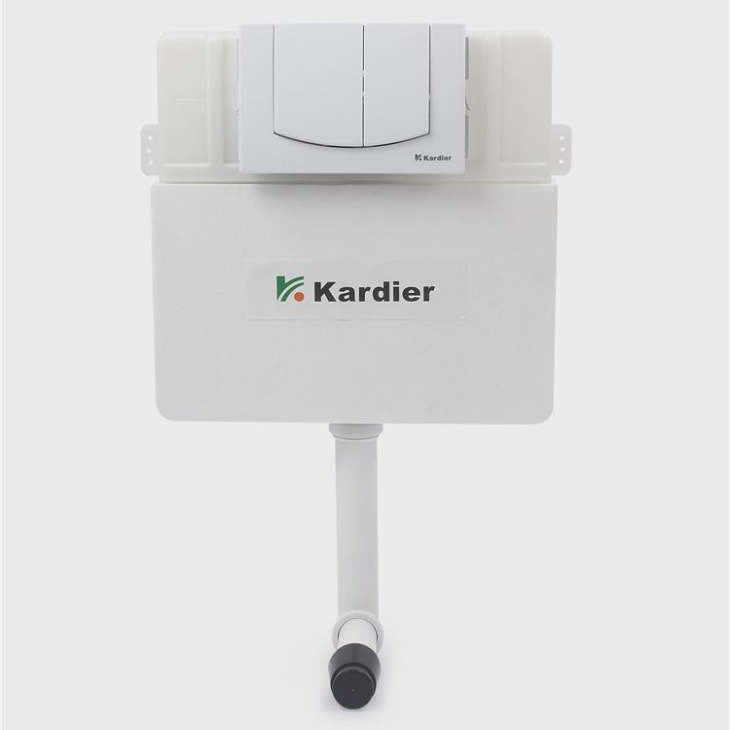

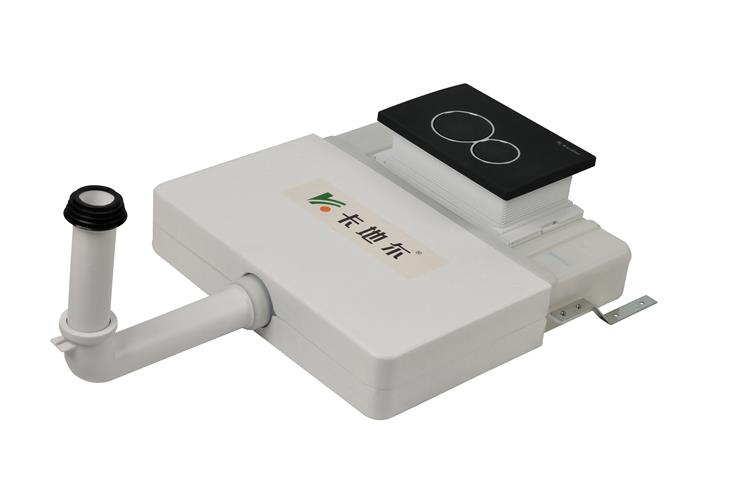

Slim Toilet Flush Cistern
We provide slim toilet flush cistern, which also describe as: slim concealed toilet cistern, suit for floor standing back to wall toilet, slim Without frame Concealed Cistern for floor standing toilet with 96mm tank body thickness, super slim wall required.
Consult
now：+86-1892485-8611/ 8635/ 8981
Product details
Product Description
Slim toilet flush cistern, also name as: slimline cistern or slim concealed cistern or concealed cistern slimline. suit for back to wall toilet pan, slim Without frame Concealed Cistern for floor standing toilet with 96mm tank body thickness, super slim wall required.
Special point:
◇ Tank body with 96mm thickness only, super slim item for standing floor toilet use
◇ With 90mm diameter flush pipe
◇ Hot sale in indian market and Australia market
◇ 1/2" standard fill water hole
◇ 3L/6L dual flush water volume, the flush water time is 3S-5S
◇ The painted steel frame is corrosion resistant and can bear 400kgs heavy stress
◇ The product can be installed in the wall of 110mm thickness
◇ The water stress range of fill water is 0.02 --1.0Mpa
◇ The water temperature range is 2°- 45°
Item NO. | 011B | Certificate approval | CE / WRAS/ WATERMARK/ WELS |

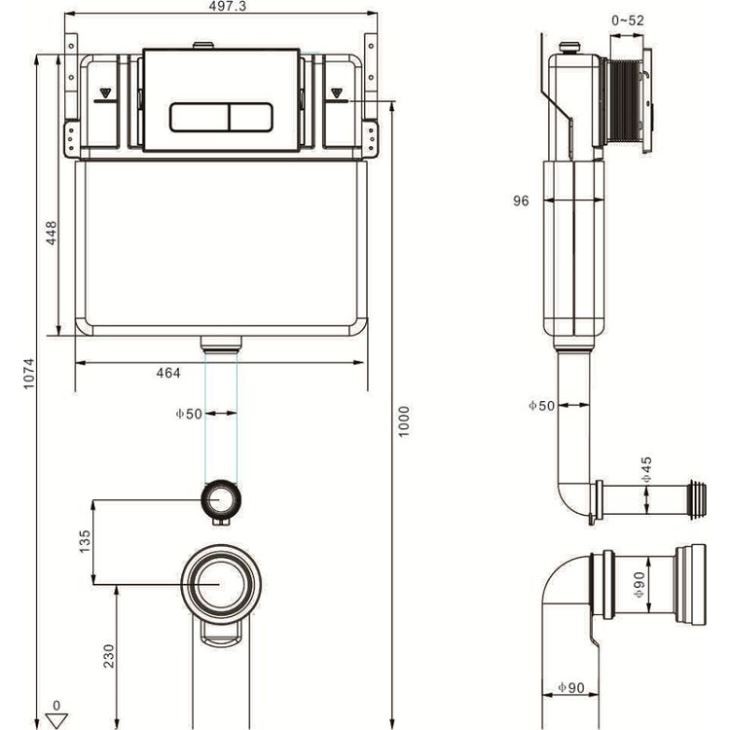

Dimension (mm) | 497.3x96x1074mm | Flush pipe φ | 90mm |
Carton Size (mm) | 741x540x525mm (5pcss/ctn) | Suit for | Bathroom standing floor toilet |
Need wall thickness | ≥120mm | Material | HDPE plastic |
For wall | dry wall and pre-wall; dry half wall; pre-half wall | Flush volumn | 3L/ 6L max. 8L |
Panel size (mm) | 250x165mm | Panel choices | Q/W/M/H/F/A/B/C/D |
Panel color | white/black/gold/chrome/satin/ silver etc | Flushing | Dual flush |
Frame undertake (kgs) | ≥400 | Delivery Time | LCL 7-10 days, 20GP & 40HQ need 20-25days |
Package details | Carton packing, 1set/box and 5sets/ctn; flush pipe packing size: 605x430x508mm (12pcs/ctn) | Loading qty | 0.21CBM/5SET (0.053cbm/pc) Flush pipe: 0.132CBM/CTN(12pcs/ctn) 20GP: 520 sets 40GP: 1050 sets 40HQ: 1250sets |

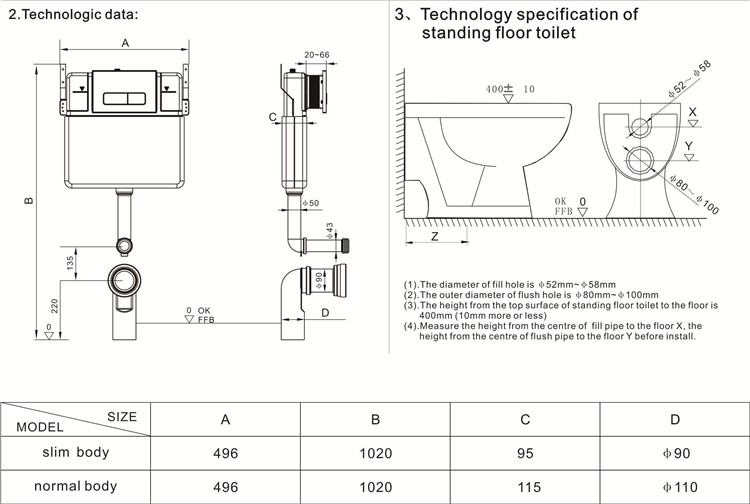

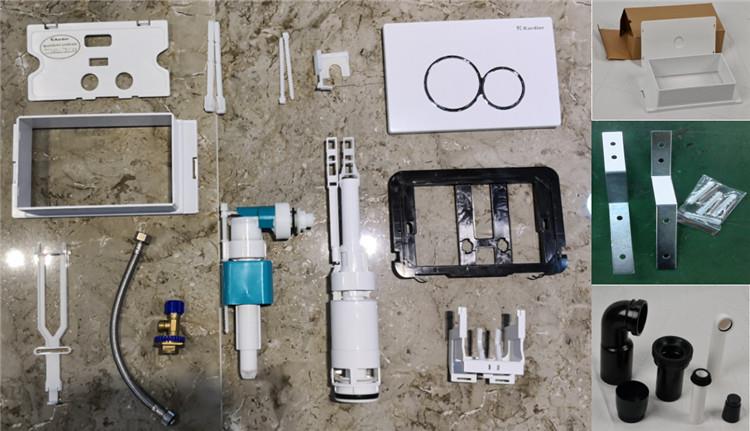

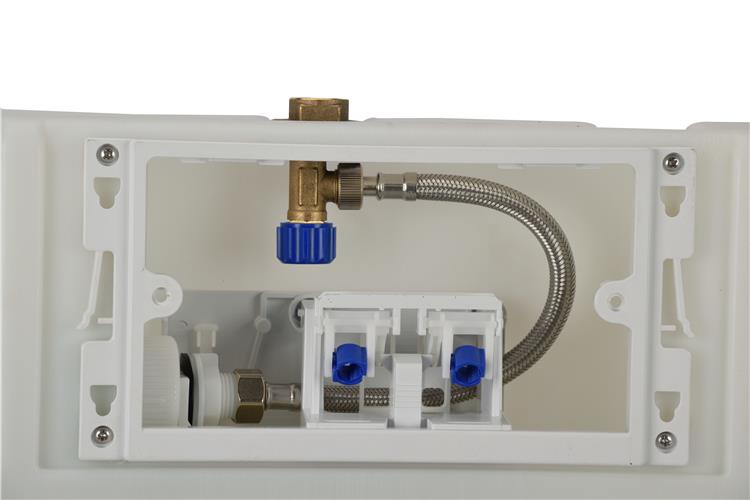

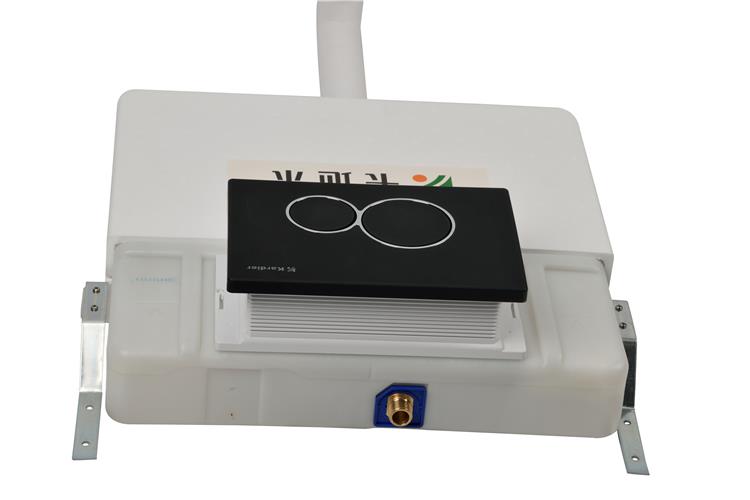

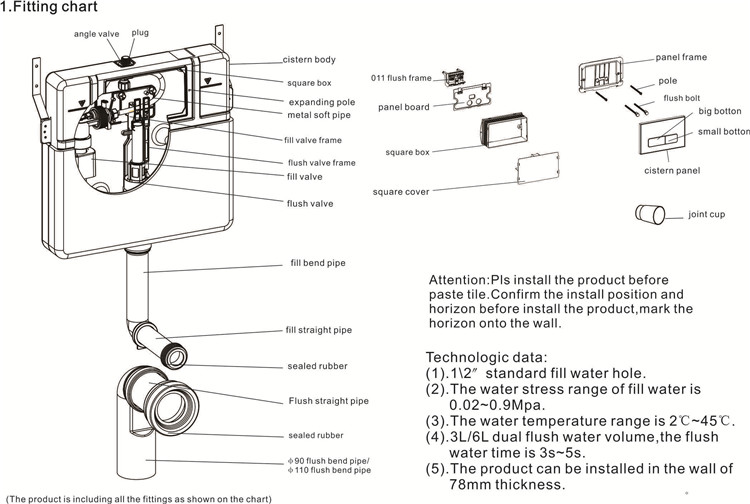

Product Details

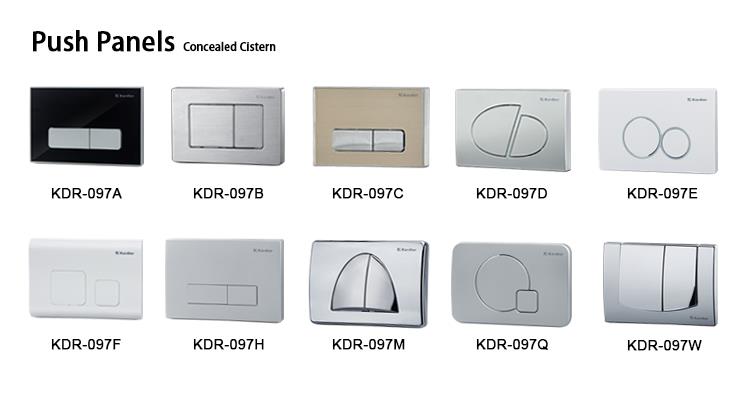

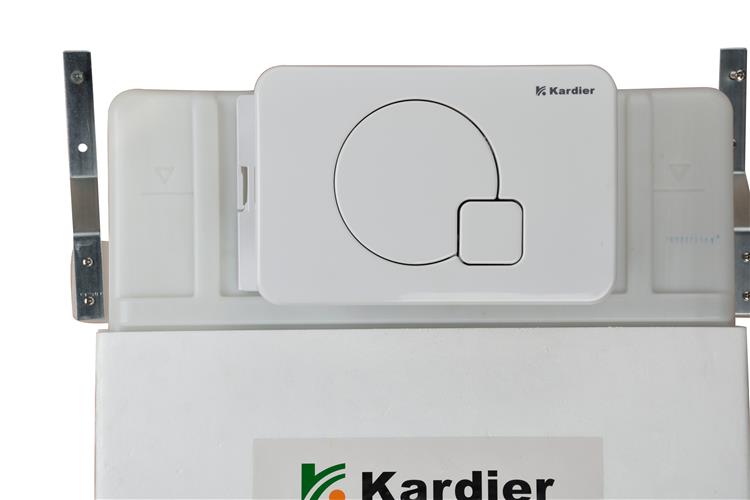

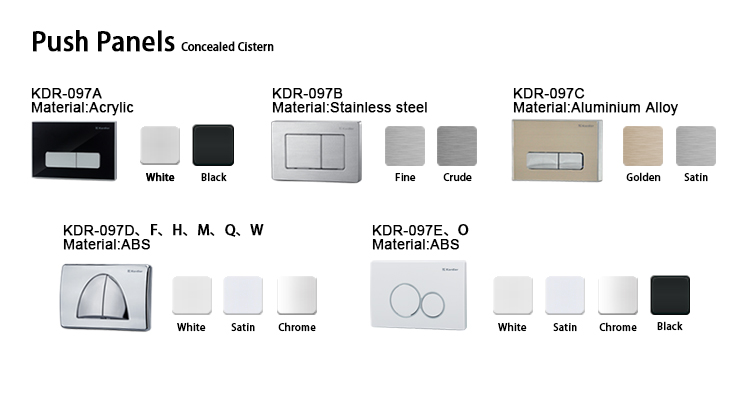

Concealed cistern flush panels

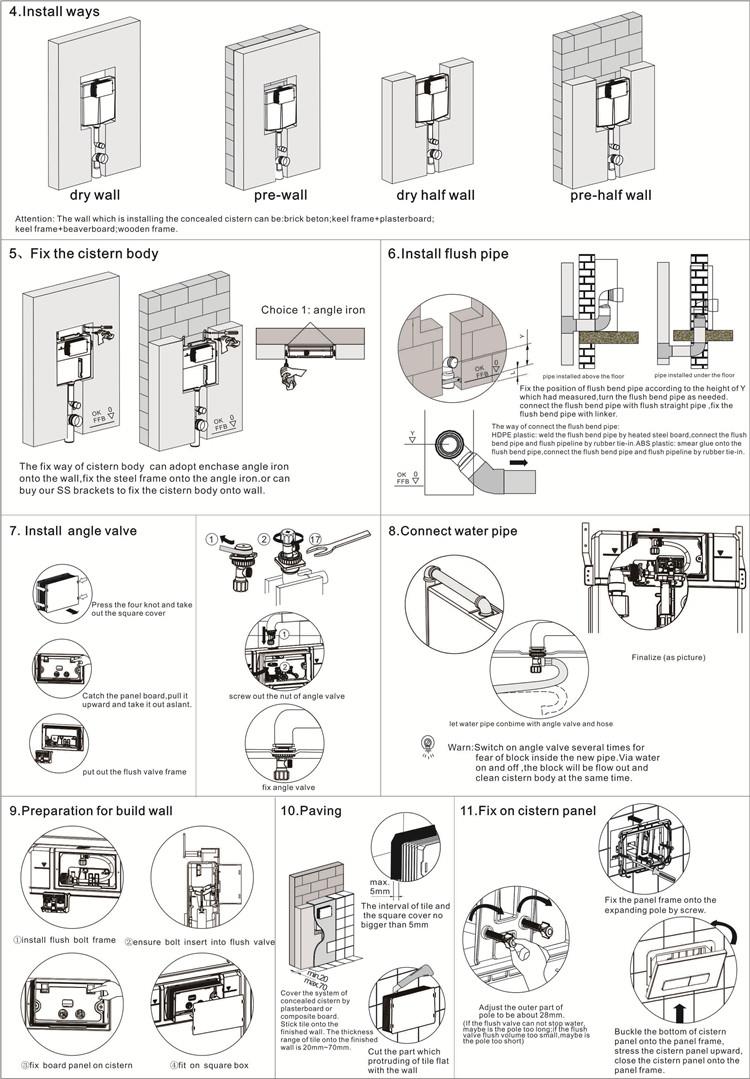

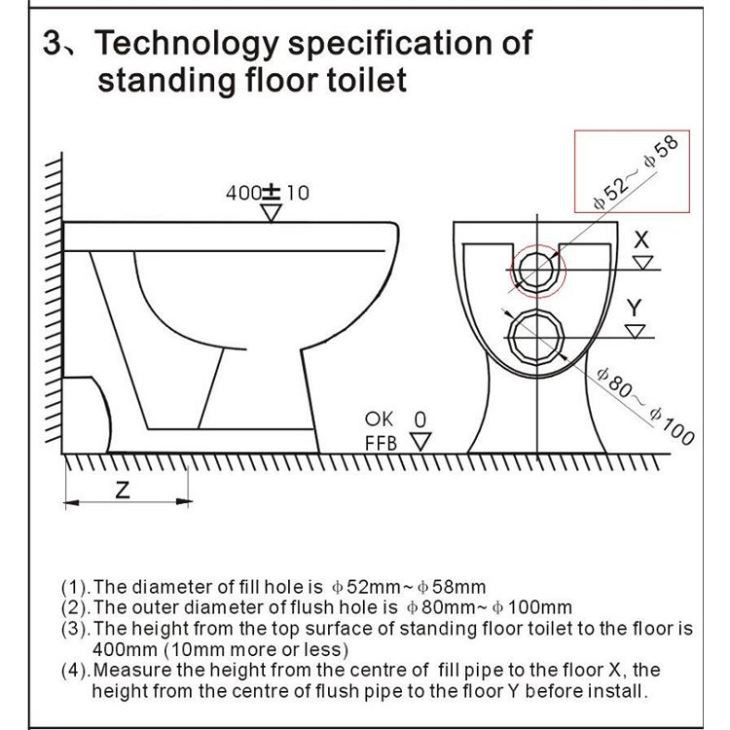

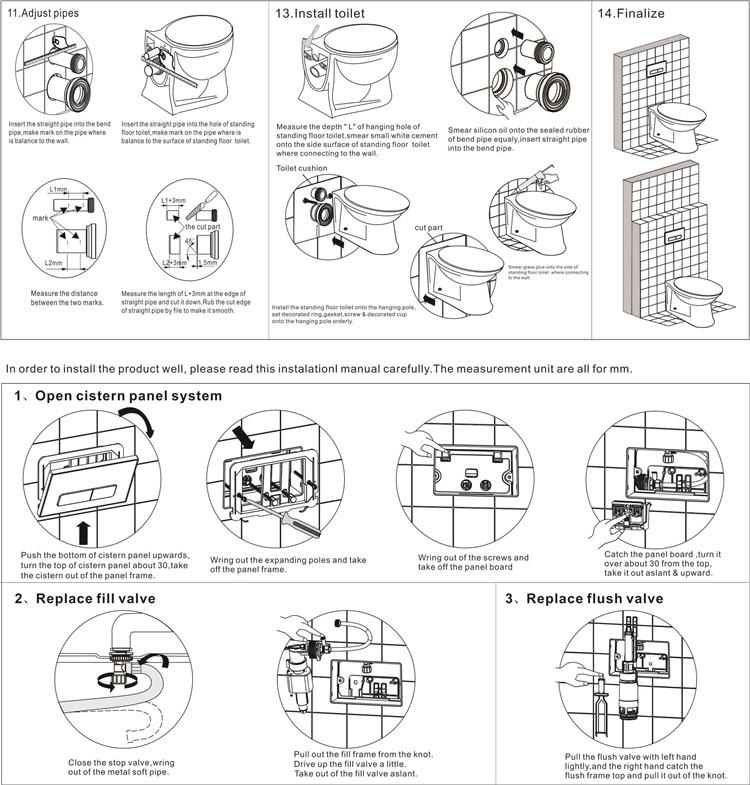

Concealed toilet cistern Installation

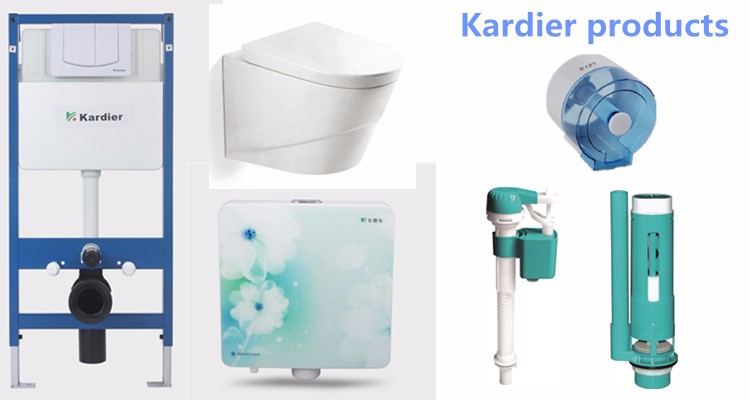

Kardier Products Range
